Part Number | 51208 |
Bearing type | BALL |
Structure | THRUST BALL |
Load Direction | AXIAL |
Raceway type | groove raceway |

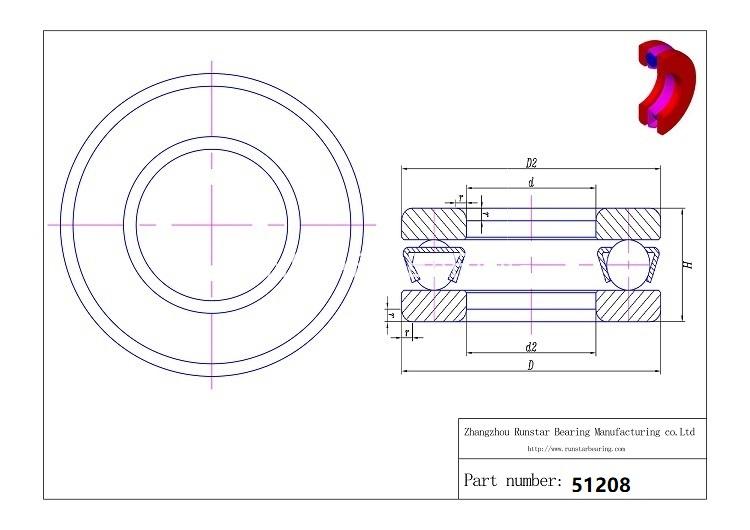

bore diemater of shaft washer(d) | 40mm |
Outer diameter of housing washer(D) | 68mm |
bore diemater of housing washer(d1) | 42mm |
Outer diameter of shaft washer(D1) | 68mm |
thickness( H) | 19mm |
radius | 1mm |
material of washers | Chrome steel 52100(Gcr15) |
material of cage | bronze or stainless steel |
ball material | Chrome steel 52100(Gcr15) |
Grade | ABEC-1(higher grade available) |
Clearance | C0(other clearance available) |
BALL SIZE(mm) | |
BALL QTY | |
lubrication | grease(oil available) |
Temperature Range | -30℃~130℃ |
weight(g) | 260 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 47 KN |
Static Load Rating (Cor) | 98.2 KN |
Limit speed(rpm)for bearing with grease | 2400 |
Limit speed(rpm)for bearing with oil | 3600 |

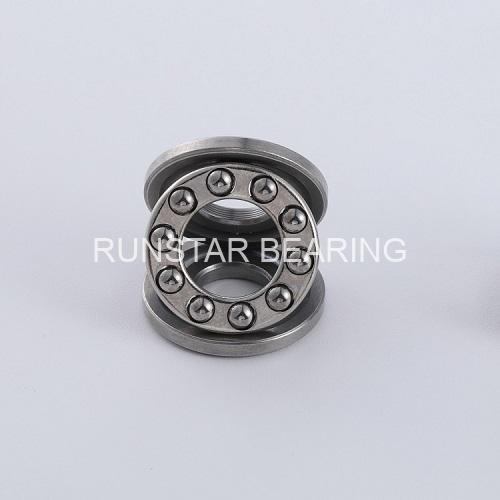

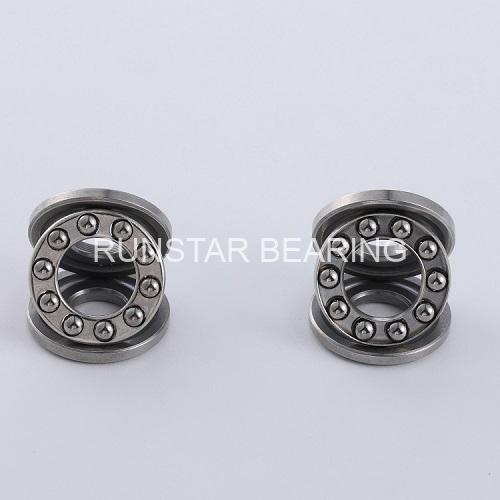

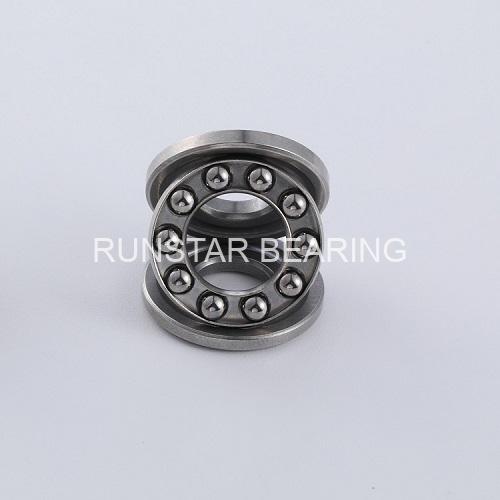

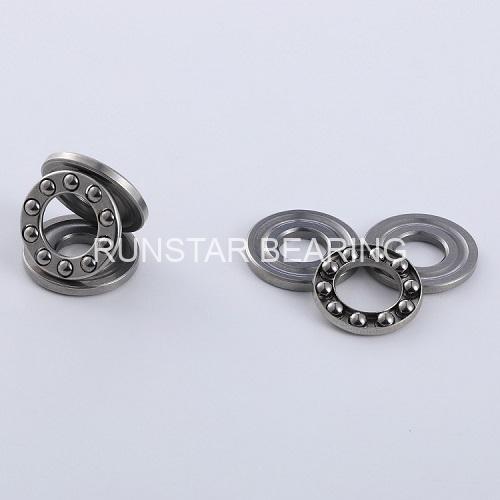

Thrust bearings washers are also called t thrust washer bearing in Runstar.They are composed of shaft washer,housing washer and steel balls with cage. And shaft washer is designed to fix the shaft, and housing washer is designed to fix the parts outside the shaft. Compared with deep groove ball bearings, Thrust bearings washers can not support radial load or high speed, it can only support axial load and mediunm speed in application.
Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is a professional Thrust bearings washers manufacturer since 2007,certified ISO9001:2015. Runstar has more than 15 years in designing and manufacturing Thrust bearings washers for industries, customized Thrust bearings washers are accepted in Runstar.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
51208 |
