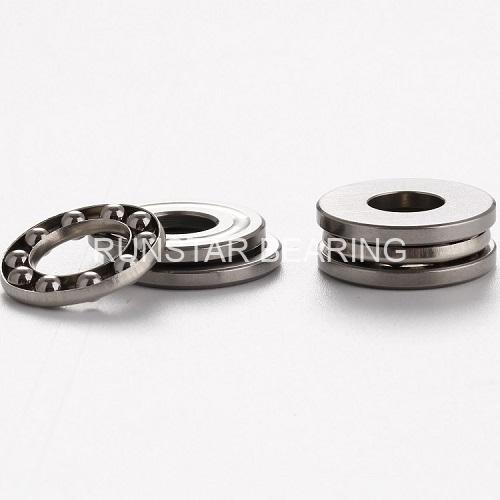

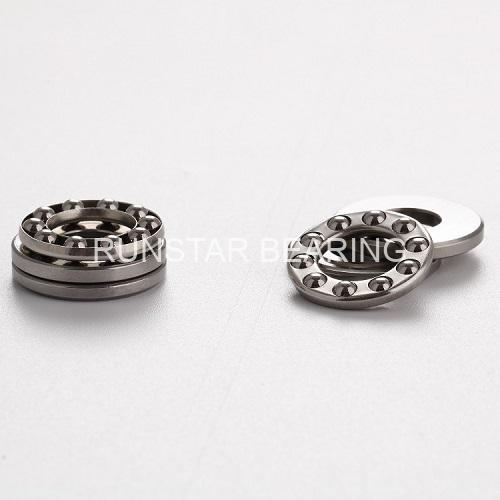

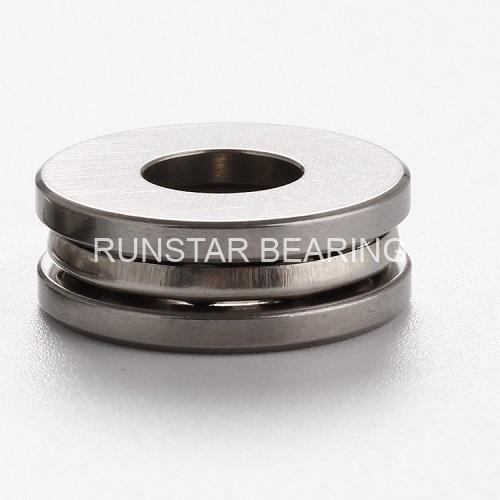

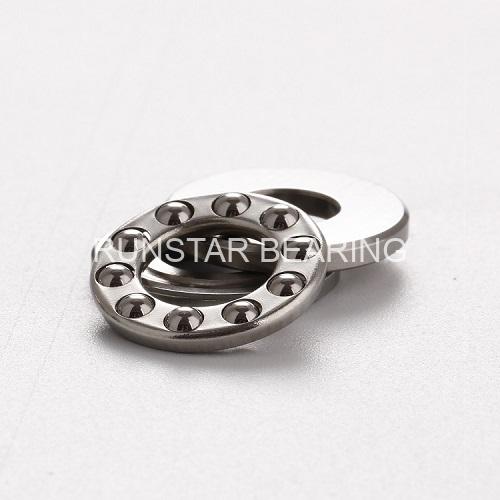

Part Number | 51111 |
Bearing type | BALL |
Structure | THRUST BALL |
Load Direction | AXIAL |
Raceway type | groove raceway |
bore diemater of shaft washer(d) | 55mm |
Outer diameter of housing washer(D) | 78mm |
bore diemater of housing washer(d1) | 57mm |
Outer diameter of shaft washer(D1) | 78mm |
thickness( H) | 16mm |
radius | 0.6mm |
material of washers | Chrome steel 52100(Gcr15) |
material of cage | bronze or stainless steel |
ball material | Chrome steel 52100(Gcr15) |
Grade | ABEC-1(higher grade available) |
Clearance | C0(other clearance available) |
BALL SIZE(mm) | |
BALL QTY | |
lubrication | grease(oil available) |
Temperature Range | -30℃~130℃ |
weight(g) | 220 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 33.8 KN |
Static Load Rating (Cor) | 89.2 KN |
Limit speed(rpm)for bearing with grease | 2800 |
Limit speed(rpm)for bearing with oil | 4000 |
friendly reminder
The unit weight is 0.22 KG per piece,so please consider the suitable way of delivery before order.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
51111 |
