thrust ball bearing dimensions 51109

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 51109
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 45mm
Outer diameter of housing washer(D) 65mm
bore diemater of housing washer(d1) 47mm
Outer diameter of shaft washer(D1) 65mm
thickness( H) 14mm
radius 0.6mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)
BALL QTY
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 140
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 27 KN
Static Load Rating (Cor) 66 KN
Limit speed(rpm)for bearing with grease 3200
Limit speed(rpm)for bearing with oil 4500

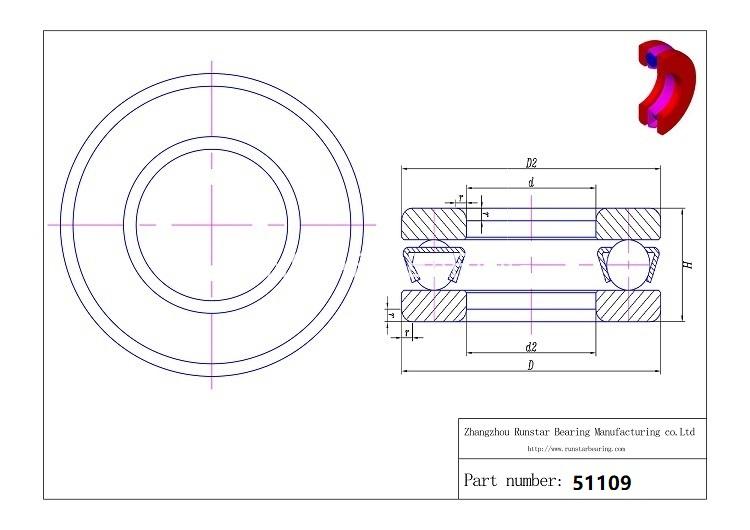

thrust ball bearing dimensions 51109 d

friendly reminder

The unit weight is 0.14KG per piece,so please consider the suitable way of delivery before order.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
51109
