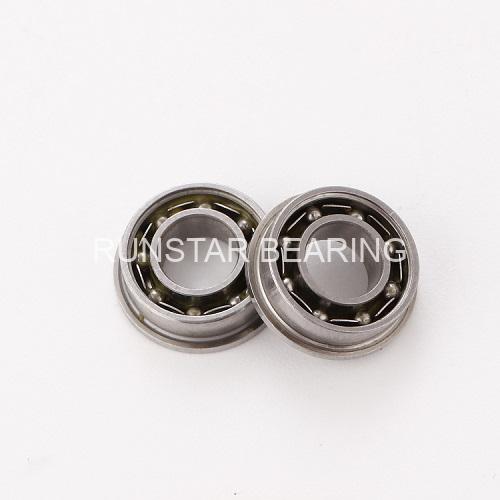

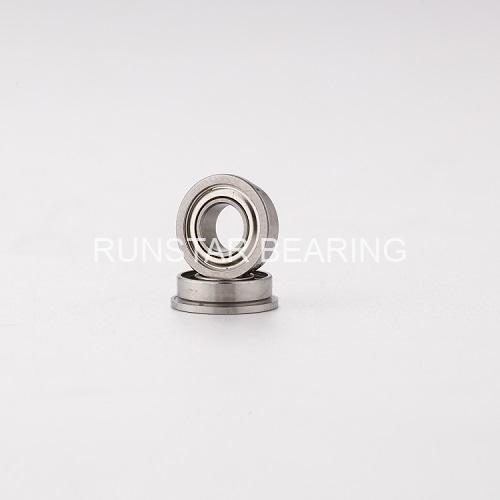

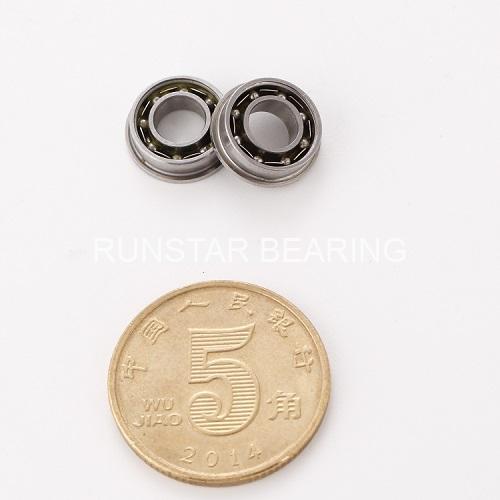

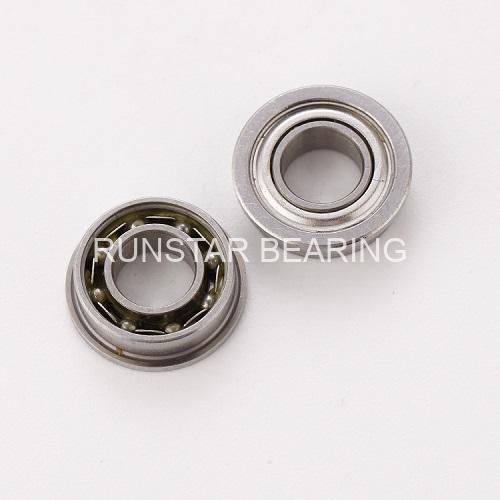

| Part Number | F6702 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 15mm |
| Outer diameter(D) | 21 mm |
| Flange OD(Df) | 22.5 mm |
| Width(B) | 4mm |
| Flange thickness (Bf) | 0.8mm |
| radius (rs) | 0.20mm |
| material | Chrome steel Gcr15 |
| ring material | Chrome steel Gcr15 |
| cage material | Stainless steel 304 |
| ball material | Chrome steel Gcr15 |
| shields material | Stainless steel 304 |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.588mm |
| BALL QTY | 14 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 3.6 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 937 N |
| Static Load Rating (Cor) | 582 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F6702 |
