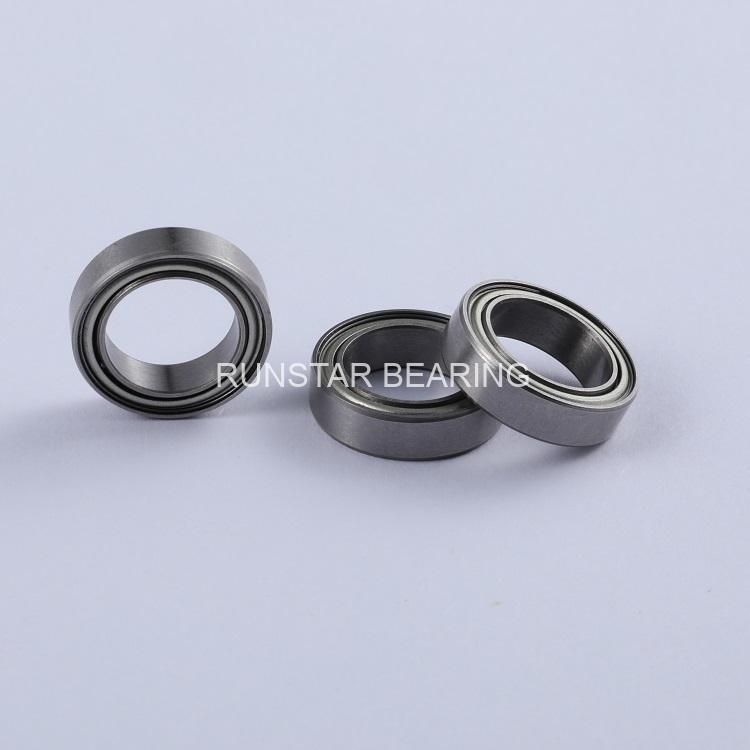

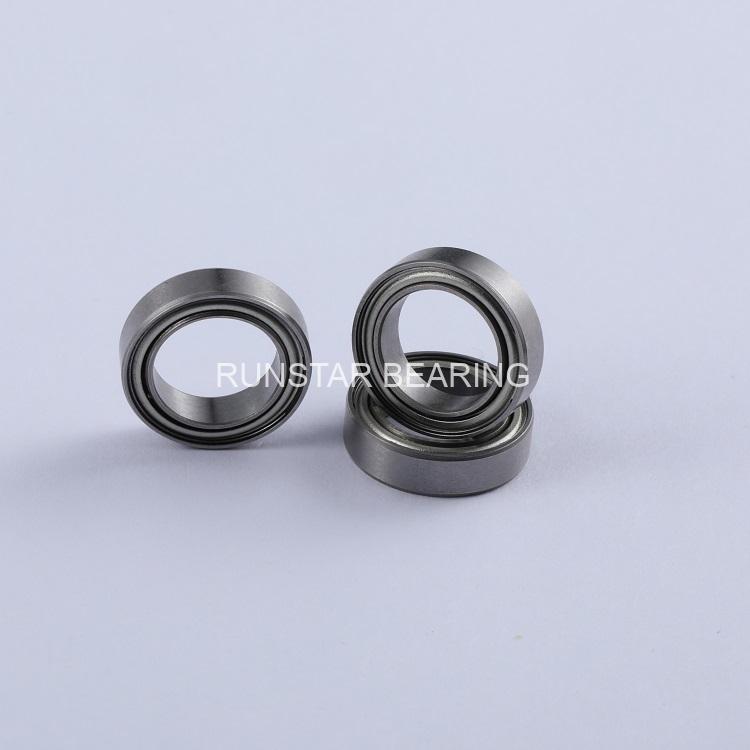

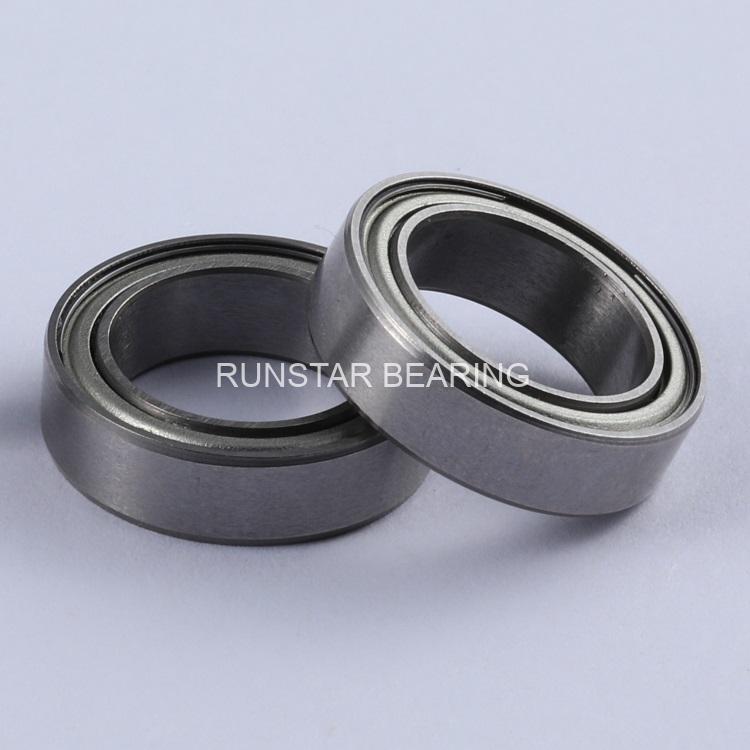

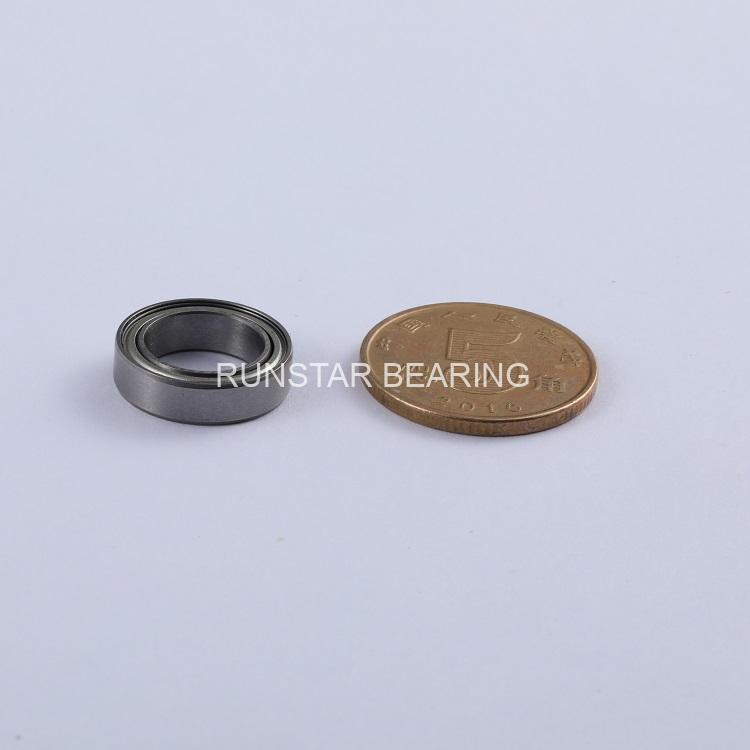

Part Number | 6700 |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | open |
Bore diameter(d) | 10mm |
Outer diameter(D) | 15mm |
Width(B) | 3mm |
material | Chrome steel 52100(Gcr15) |
ring material | Chrome steel 52100(Gcr15) |
cage material | 300 Series Stainless Steel |
ball material | Chrome steel 52100(Gcr15) |
shields material | 300 Series Stainless Steel |
Grade | ABEC-1(higher grade available) |
Clearance | C0(other clearance available) |
BALL SIZE(mm) | 1.588mm |
BALL QTY | 11 |
lubrication | grease(oil available) |
Temperature Range | -30℃~130℃ |
weight(g) | 1.9 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 855 N |
Static Load Rating (Cor) | 435 N |
6700 is one of pop rc bearings for Tamiya model, it is with a bore diameter 10mm,a outer diameter 15mm,and a width 3mm, it is open type, we also have the bearings with different color of rubber seal for choices.
Tamiya is a famous RC model manufacturer, so Tamiya ball bearings are referred bearings used for Tamiya model. Some rc bearings are used on servers, some on wheels, and some on micro motors.
Runstar is a professional Tamiya ball bearings manufacturer, we have been committed to the design and production of rc bearings with high precision and high speed, who has more then 15 year’s experience in designing and manufacturing rc bearings for rc models.
We have full size of Tamiya ball bearings,rc bearings for choice, all Tamiya ball bearings from Runstar has the followings characteristics.
1:full size of rc bearings available. Runstar design and manufacture full sizes of rc bearings with a bore size from 1mm to 20mm for rc models,it consists of metric miniature ball bearing, inch miniature ball bearing and miniature flange bearings.
2:High Precision to meet all needs in quality. Runstar’s RC Bearings have different grade from ABEC-1 to ABEC-7 for choice.
3:High speed . It is one of the most basic requirements of rc bearings. RC Bearings with high speed can give full play to the performance of rc models.
4:Long life. The long-time rotation with high speed is a great test for the service life of the rc bearings. Runstar’s rc bearings are strictly controlled and managed from the selection of materials and each process to ensure that each rc bearing can be durable.
5:customized rc bearings is accepted.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
6700 |
