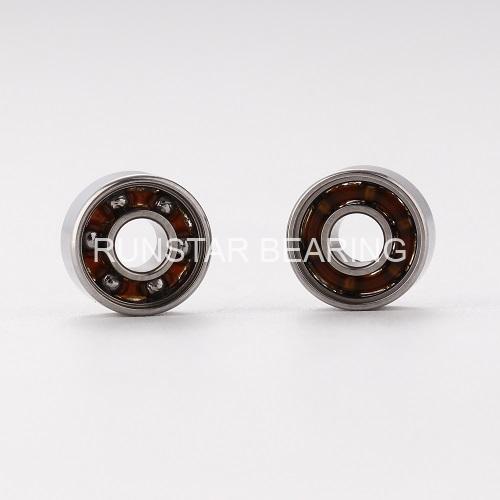

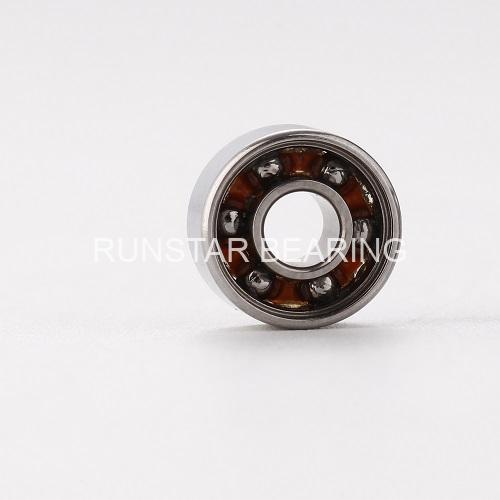

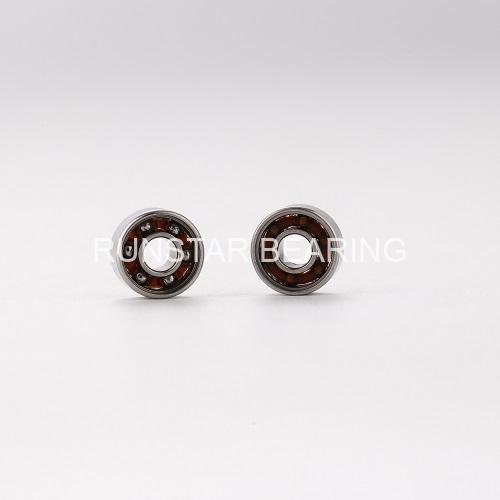

stainless steel miniature ball bearings S625

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number S625
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 5mm
Outer diameter(D) 16mm
Width(B) 5 mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 2.778mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 4.95
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 1470N
Static Load Rating (Cor) 540  N
stainless steel miniature ball bearings s625 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S625 SR-1650 S625 S625 S625 S625
