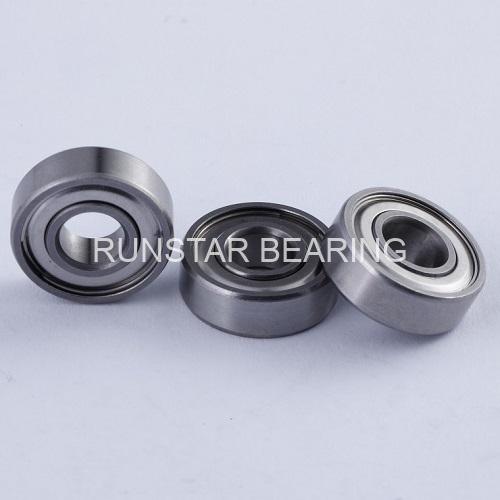

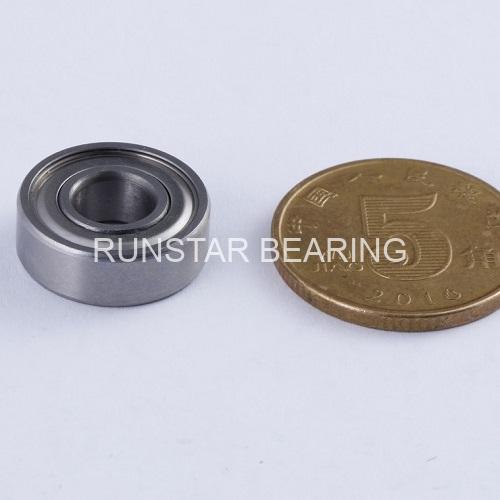

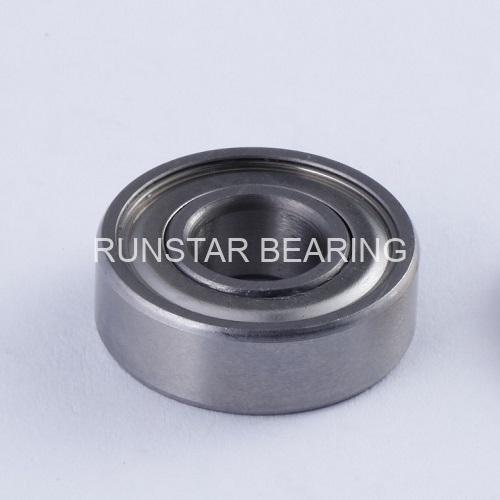

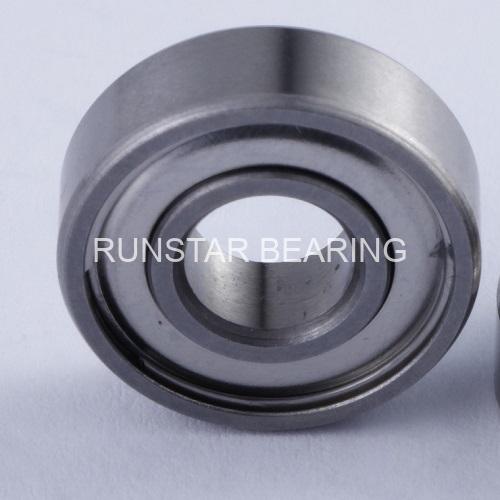

Part Number | S696ZZ |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | Shields |
Bore diameter(d) | 6mm |
Outer diameter(D) | 15mm |
Width(B) | 5 mm |
material | Stainless steel 440C(9Cr18) |
ring material | Stainless steel 440C(9Cr18) |
cage material | Stainless steel 304 |
ball material | Stainless steel 440C(9Cr18) |
Rubber material | Stainless steel 304 with rubber |
Grade | ABEC-1 |
Clearance | C0 |
BALL SIZE(mm) | 2.381mm |
BALL QTY | 7 |
lubrication | grease or oil |
Temperature Range | -30℃~130℃ |
weight(g) | 3.85 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 1139 N |
Static Load Rating (Cor) | 418 N |
Stainless steel ball bearings are also called stainless steel ball bearing,stainless steel bearings or stainless ball bearings. Usually,the stainless steel used in ball bearings are belong to a martensitic-type stainless steel which can meet the needs in bearings hardness,corrosion resistance and dimensional stability.
Compared with ordinary chrome steel ball bearing, Stainless steel ball bearing can keep from corrosion caused by some acids or moisture,and stainless steel ball bearing have obvious advantages of stable operation, low noise, low magnet, wide application, excellent anti-corrosion and anti-rust properties. But stainless steel ball bearing are more difficult and strict than ordinary bearings in technology and precision control.
Stainless steel ball bearings can be widely used in the fields of medical equipment, cryogenic engineering, optical instruments, high-speed machine tools, high-speed motors, precision clocks,printing machinery, wind speed measuring instruments, food processing machinery, scanners and fishing reels etcs.
Stainless steel ball bearing are just suitable for applications in little corrosive environments , corrosive environments with seawater,stronger alkalis and stronger acids are not recommended,it will greatly affected the corrosion resistance of stainless steel ball bearing.
Runstar is a professional stainless steel ball bearings suppliers in china since 2007,certified ISO9001:2015.we have full metric and inch stainless steel miniature bearing, there are open type, with shields and rubber seals for choice.
Usually, there are stainless steel 440(9Cr18),stainless steel 420(9Cr13) for choice in Runstar, stainless steel 316 is sometimes available for special application.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
S696zz | SR-1560zz | S696zz | SAY6zz | S696zz | S696zz |
