stainless steel ball bearings SMR104ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SMR104ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 4mm
Outer diameter(D) 10mm
Width(B) 4mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 1.588mm
BALL QTY 8
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 1.33
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 604 N
Static Load Rating (Cor) 218  N

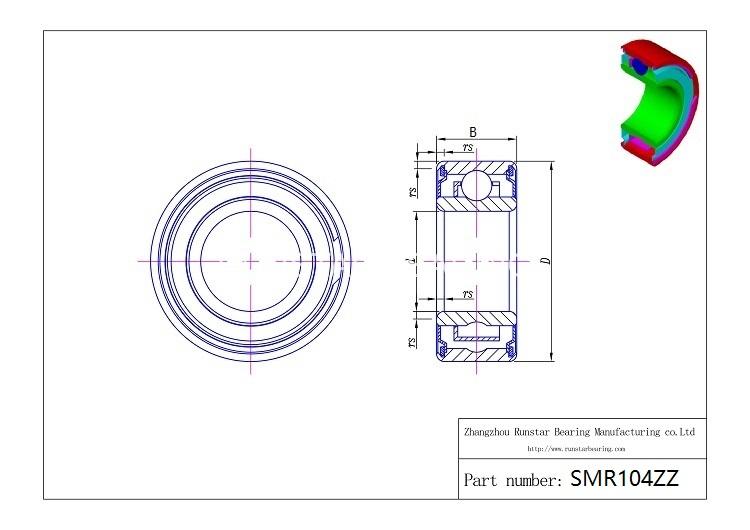

stainless steel ball bearings smr104zz d

Stainless steel ball bearings are also called stainless steel bearings or stainless bearings in Runsar. Compared with ordinary ball bearing with chrome steel, Stainless steel ball bearings can keep from corrosion caused by some acids or moisture,and stainless steel ball bearings have obvious advantages of stable operation, low noise, low magnet, wide application, excellent anti-corrosion and anti-rust properties.  But stainless steel ball bearings are more difficult and strict than ordinary bearings in technology and precision control. They can be widely used in the fields of medical equipment, cryogenic engineering, optical instruments, high-speed machine tools, high-speed motors, printing machinery, food processing machinery etcs.

Runstar is a professional stainless steel ball bearings manufacturer in china since 2007,certified ISO9001:2015.Usually, there are 440(9Cr18),420(9Cr13) for choice in Runstar, 316 is sometimes available for special application,the grade of stainless steel ball bearings can be from ABEC-1 to ABEC-7 at request.

The item SMR104ZZ is a metric stainless steel ball bearings with shields in Runstar,it is with a bore diameter 4mm,a outer diameter 10mm and a width 4mm,it can support the dynamic load rating 711 N, it is a very pop stainless steel ball bearings for fishing reel,food processing and home appliances.

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SMR104zz SL-1040zz SX4zz SMR104zz
