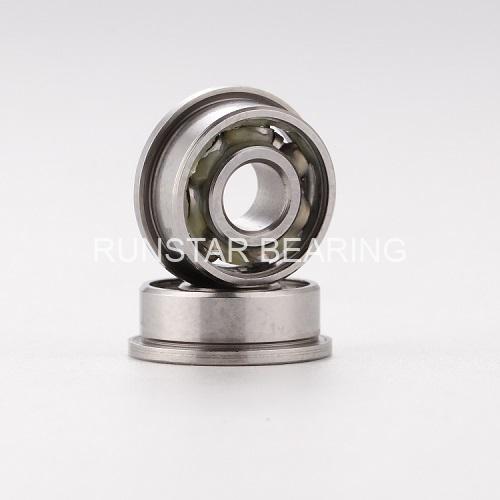

Part Number |
SF605 |
Bearing type |
BALL |
Structure |
Single Row |
Load Direction |
Radial |
Seal type |
Open |
Bore diameter(d) |
5mm |
Outer diameter(D) |
14mm |
Flange OD |
16mm |
Width(B) |
5mm |
Flange thickness |
1mm |
radius |
0.2mm |
material |
Stainless steel 440C(9Cr18) |
ring material |
Stainless steel 440C(9Cr18) |
cage material |
Stainless steel 304 |
ball material |
Stainless steel 440C(9Cr18) |
shields material |
Stainless steel 304 |
Grade |
ABEC-1(higher grade available) |
Clearance |
C0(other clearance available) |
BALL SIZE(mm) |
2.381mm |
BALL QTY |
7 |
lubrication |
grease(oil available) |
Temperature Range |
-30℃~130℃ |
weight(g) |
3.83 |
ISO9001:2015 |
PASSED |
REACH |
PASSED |
ROHS |
PASSED |
Dynamic Load Rating (Cr) |
1130N |
Static Load Rating (Cor) |
406 N |
