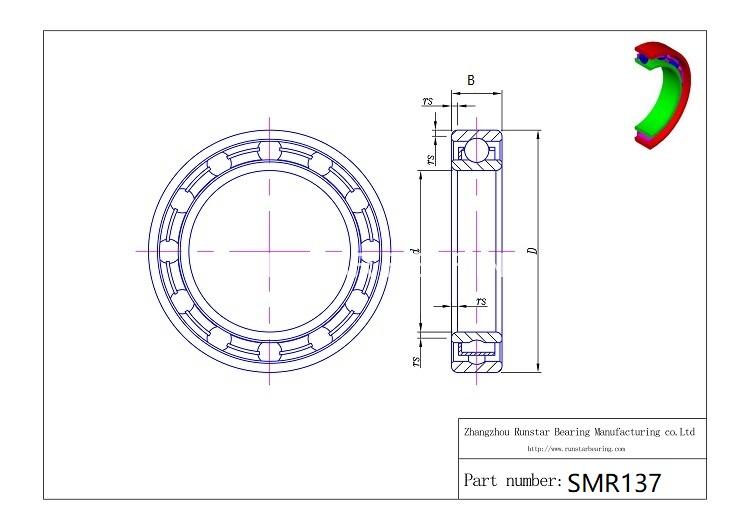

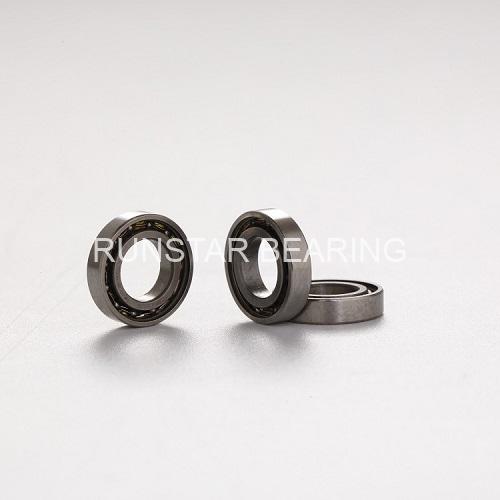

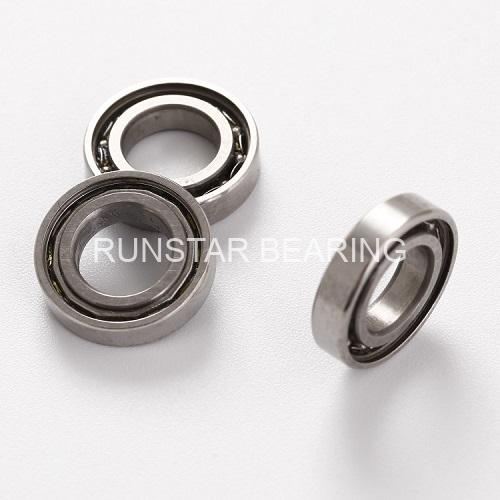

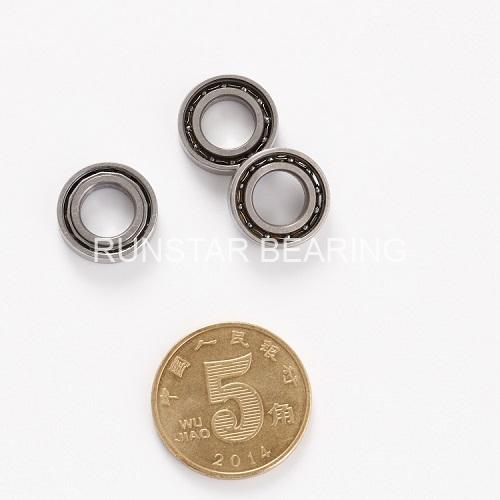

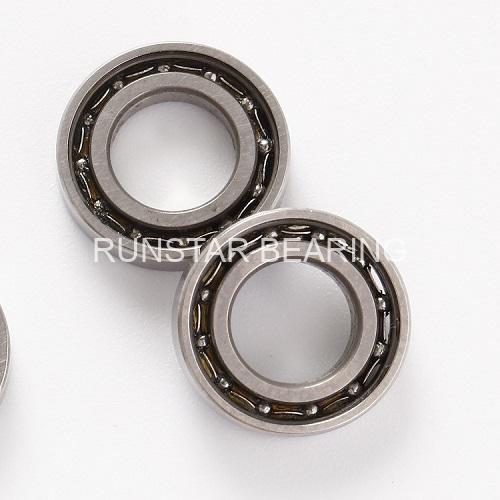

| Part Number | SMR137 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 7mm |
| Outer diameter(D) | 13mm |
| Width(B) | 4 mm |
| material | Stainless steel 440C(9Cr18) |
| ring material | Stainless steel 440C(9Cr18) |
| cage material | Stainless steel 304 |
| ball material | Stainless steel 440C(9Cr18) |
| Rubber material | Stainless steel 304 with rubber |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 1.2mm |
| BALL QTY | 12 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 1.52 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 460 N |
| Static Load Rating (Cor) | 221 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| SMR137 | SL-1370 | smr137 |
