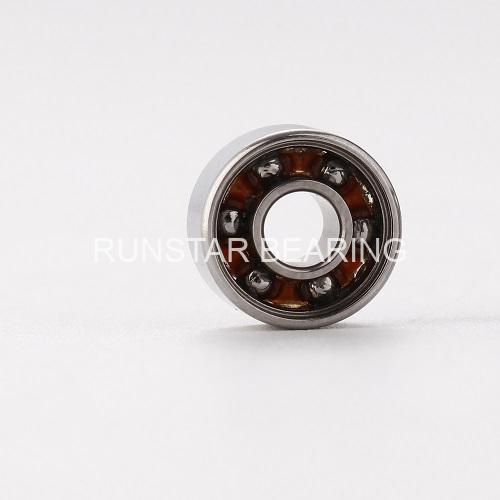

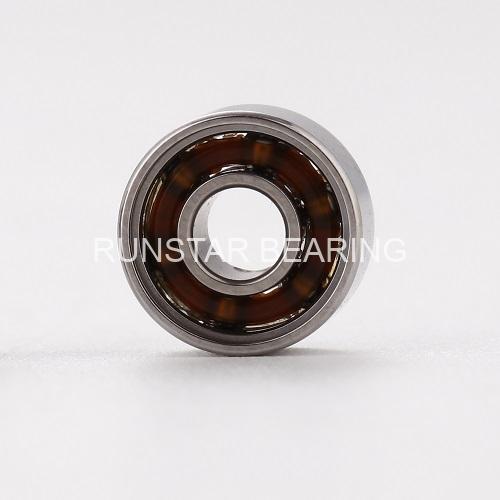

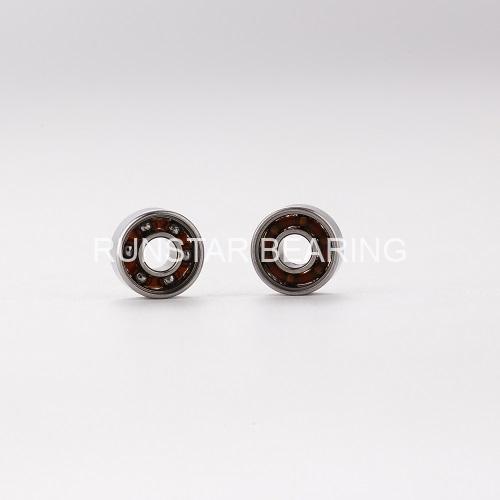

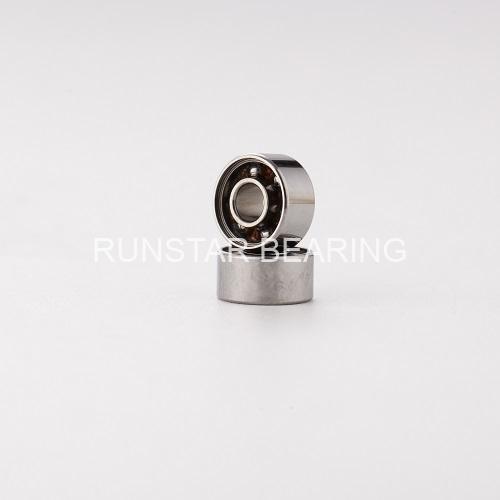

ss ball bearings S623

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number S623
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 3mm
Outer diameter(D) 10mm
Width(B) 4mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 1.45
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 536 N
Static Load Rating (Cor) 175 N
ss ball bearings s623 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S623 SR-1030 S623 S623 S623 S623
