| Part Number | 6901 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | open |
| Bore diameter(d) | 12mm |
| Outer diameter(D) | 24mm |
| Width(B) | 6mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 2.381mm |
| BALL QTY | 12 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 12 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 1915N |
| Static Load Rating (Cor) | 1041 N |
Usually,there are single row or double row for ball bearings in structure, single row ball bearings are referred to ball bearing has only one row of rolling elecments,which is the most widely used type of bearing.
RUNSTAR has a broad supplying of single row ball bearings with a bore sizes from 1mm(1/25″) to 15mm(5/8″) or greater. Runstar is a professional manufacturer of single row ball bearings since 2007,certified ISO9001:2015. Full metric and inch series of single row ball bearings are available in Runstar.

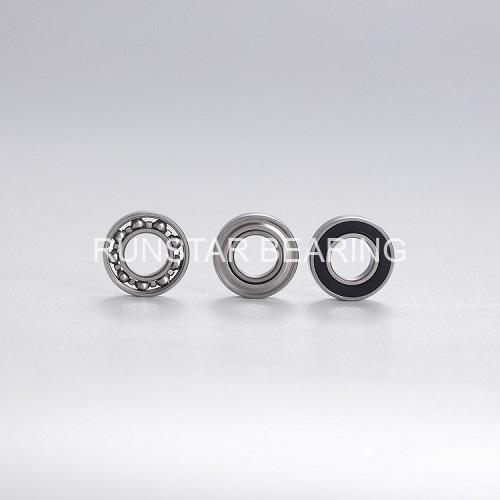

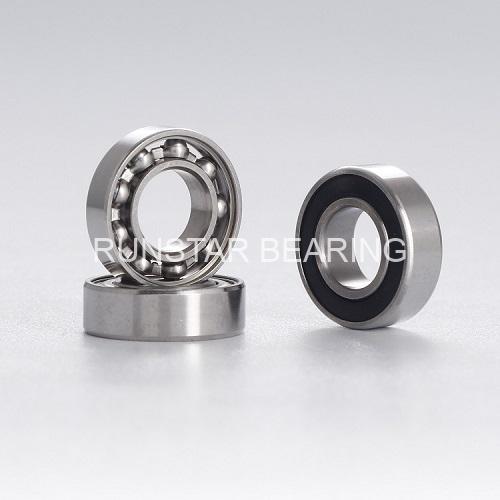

Type: Open,shields or Rubber seals for choice
Material: Chrome steel,stainless steel or hybrid ceramic
Grade: ABEC1 to ABEC-9
Memo: both metric and inch series, customized products are available
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| 6901 | 61801 |
