sealed stainless steel bearings S605-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number S605-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 5mm
Outer diameter(D) 14mm
Width(B) 5mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 2.381mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 3.75
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 1130N
Static Load Rating (Cor) 406 N

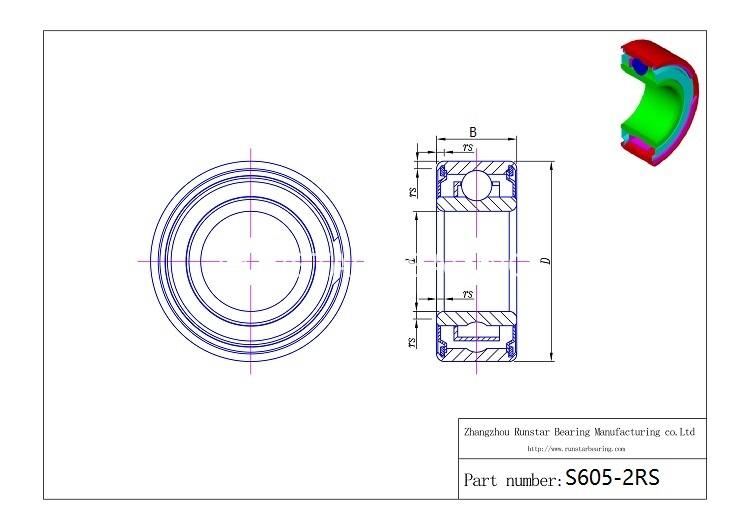

sealed stainless steel bearings s605 2rs d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S605-2RS SR-1450-2RS S605-2RS S605-2RS
