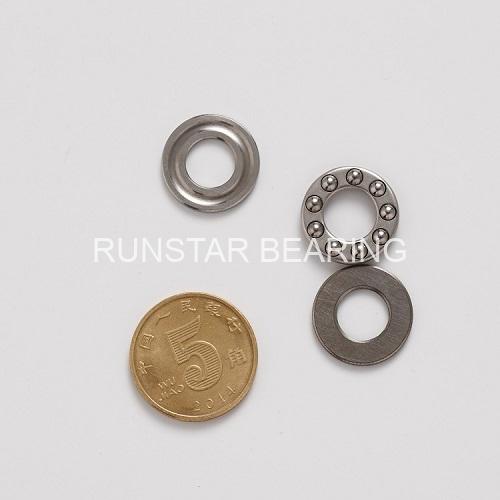

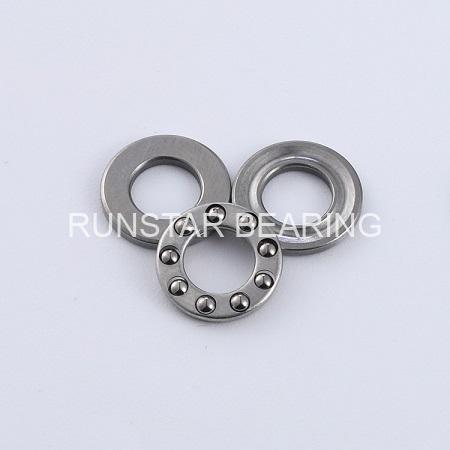

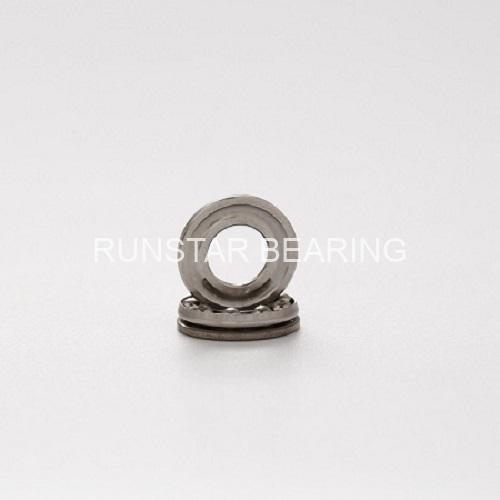

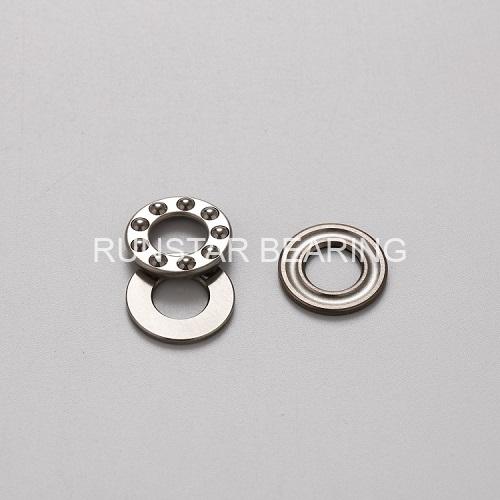

precision thrust bearings F8-16M

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F8-16M
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 8mm
Outer diameter of housing washer(D) 16mm
bore diemater of housing washer(d1)  8.2mm
Outer diameter of shaft washer(D1) 15.8 mm
thickness( H) 5mm
radius 0.2mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 3mm
BALL QTY 9
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 4.5
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 3933 N
Static Load Rating (Cor) 3556 N

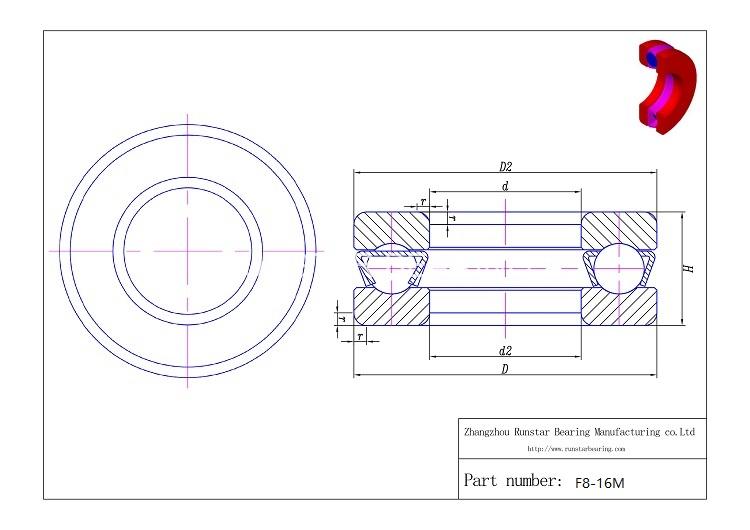

precision thrust bearings f8 16m d 1

Thrust bearing are one of particular separable ball bearings, they are composed of shaft washer,housing washer and steel balls with cage. And shaft washer is designed to fix the shaft, and housing washer is designed to fix the parts outside the shaft. Compared with deep groove ball bearings, thrust bearing can not support radial load or high speed, it can only support axial load and mediunm speed in application.

8mm Thrust Bearing is referred thrust bearings with a bore diameter 8mm in Runstar.F8-16M is belong to 8mm thrust bearings in Runstar,it is with a bore diemeter 8mm,a outer diameter 16mm and a width 5mm,and it can support dynamic load rating 3933 N. we can make the 8mm thrust bearings with chrome steel or stainless steel, as well as hybrid ceramic at request.

Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is a professional thrust bearings manufacturer since 2007,certified ISO9001:2015. Runstar has more than 15 years in designing and manufacturing thrust bearings for industries, customized thrust bearings are accepted in Runstar.

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F8-16M
