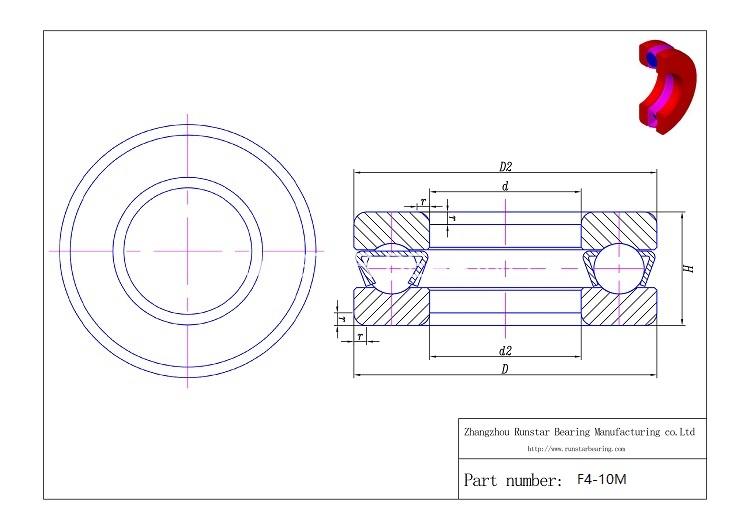

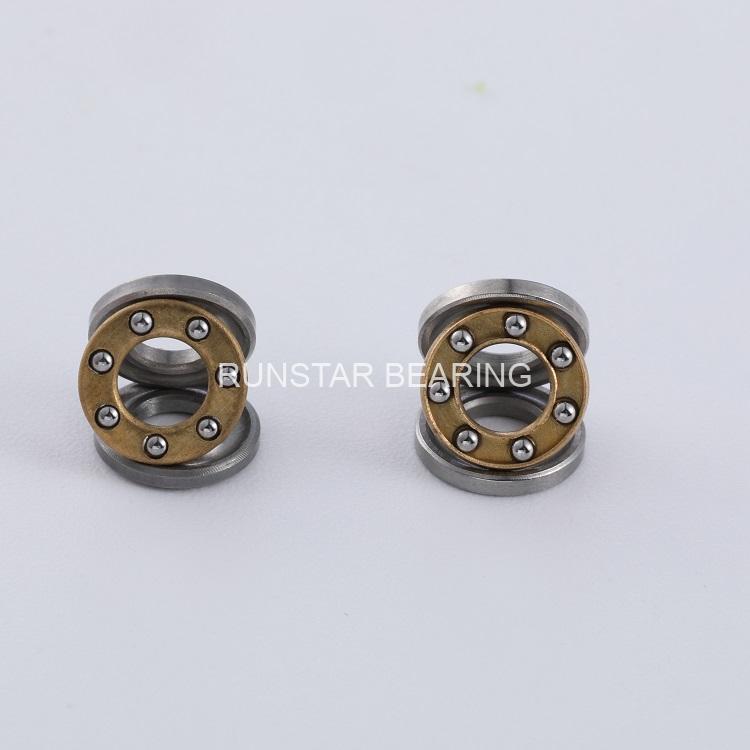

| Part Number |
F4-10M |
| Bearing type |
BALL |
| Structure |
THRUST BALL |
| Load Direction |
AXIAL |
| Raceway type |
groove raceway |
| bore diemater of shaft washer(d) |
4mm |
| Outer diameter of housing washer(D) |
10mm |
| bore diemater of housing washer(d1) |
4.2mm |
| Outer diameter of shaft washer(D1) |
9.8mm |
| thickness( H) |
4mm |
| radius |
0.15mm |
| material of washers |
Chrome steel 52100(Gcr15) |
| material of cage |
bronze or stainless steel |
| ball material |
Chrome steel 52100(Gcr15) |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
1.588mm |
| BALL QTY |
6 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
1.5 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
925 N |
| Static Load Rating (Cor) |
661 N |
|
|
|
|
