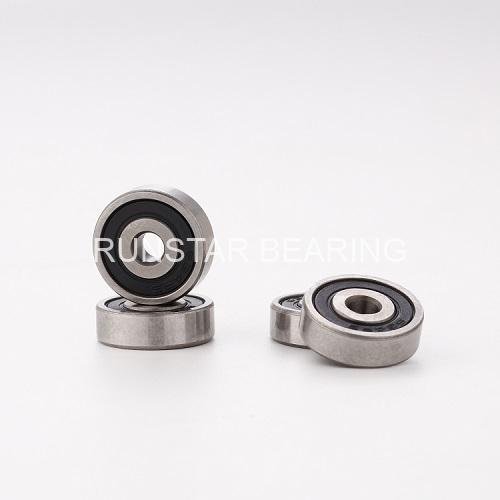

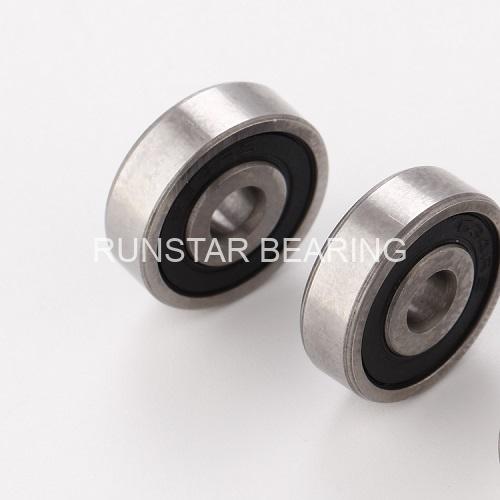

| Part Number | SR2-5-2RS |
| Bearing type | Ball |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Rubber seals |

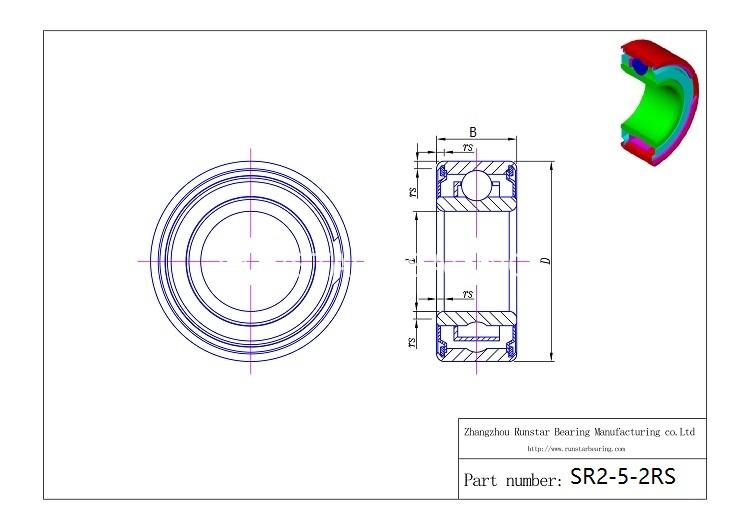

| Bore diameter(d) | 1/8″︱3.175mm |
| Outer diameter(D) | 5/16″︱7.938mm |
| Width(B) | 0.1406″︱3.571mm |
| material | Stainless steel 440C(9Cr18) |
| ring material | Stainless steel 440C(9Cr18) |
| cage material | Stainless steel 304 |
| ball material | Stainless steel 440C(9Cr18) |
| Rubber material | Stainless steel 304 with rubber |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 1.588mm |
| BALL QTY | 6 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.74 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 476 N |
| Static Load Rating (Cor) | 142 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| SR2-5-2RS | SR1-518-2RS | SR2-5-2RS | SX1/8-2RS | SBR1/8A-2RS | SR2-5-2RS |
