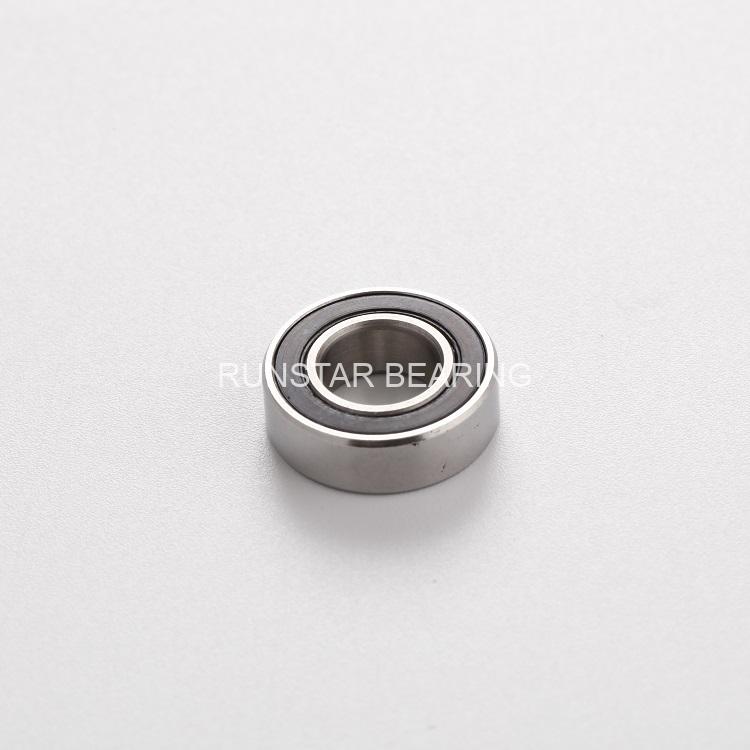

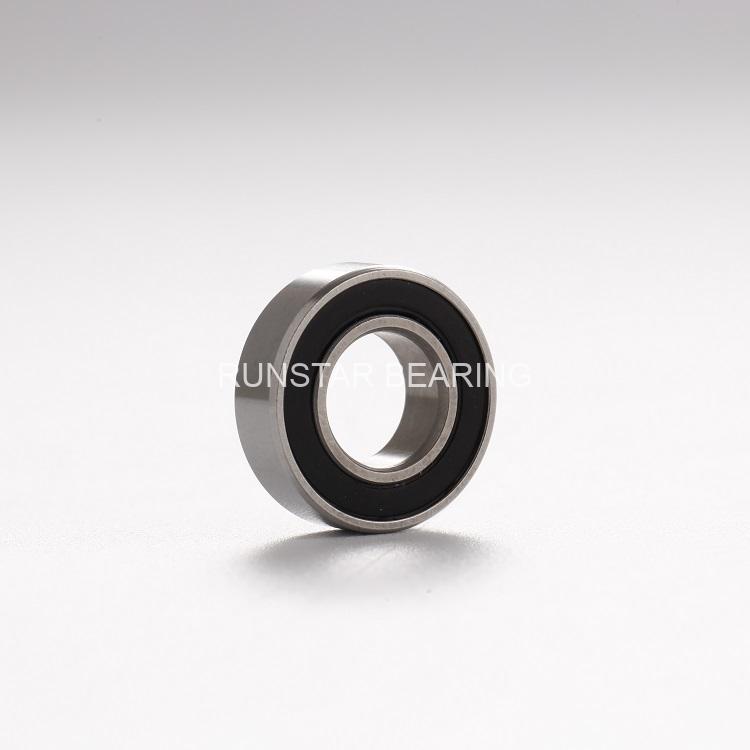

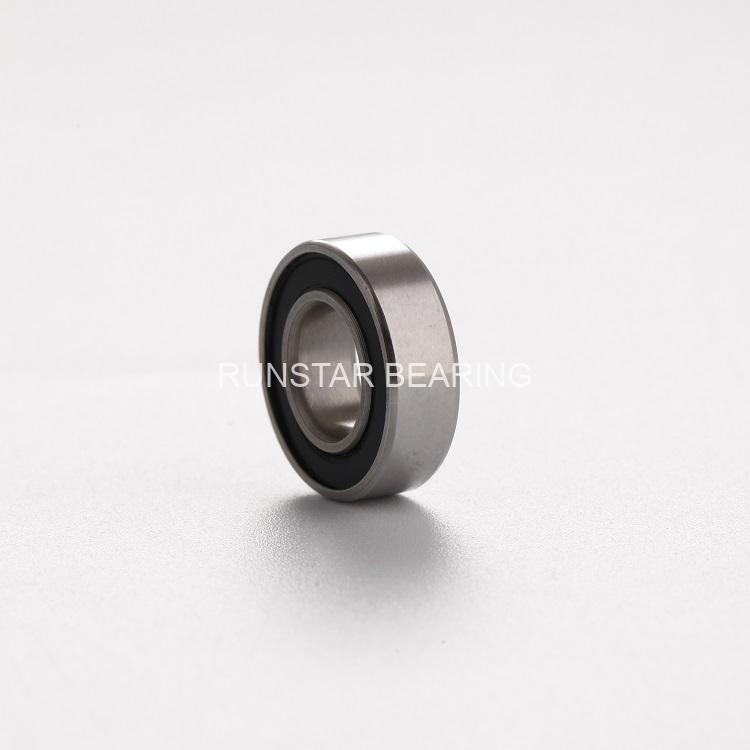

precision miniature bearings 605-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 605-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber Seals
Bore diameter(d) 5mm
Outer diameter(D) 14mm
Width(B)  5 mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)  2.381 mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 3.75
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  1130N
Static Load Rating (Cor) 406   N

Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.
