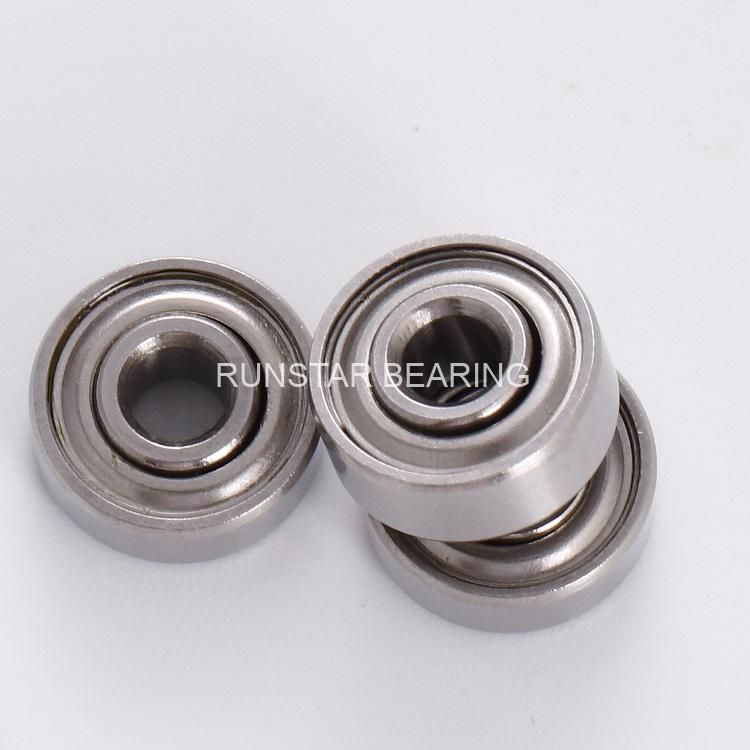

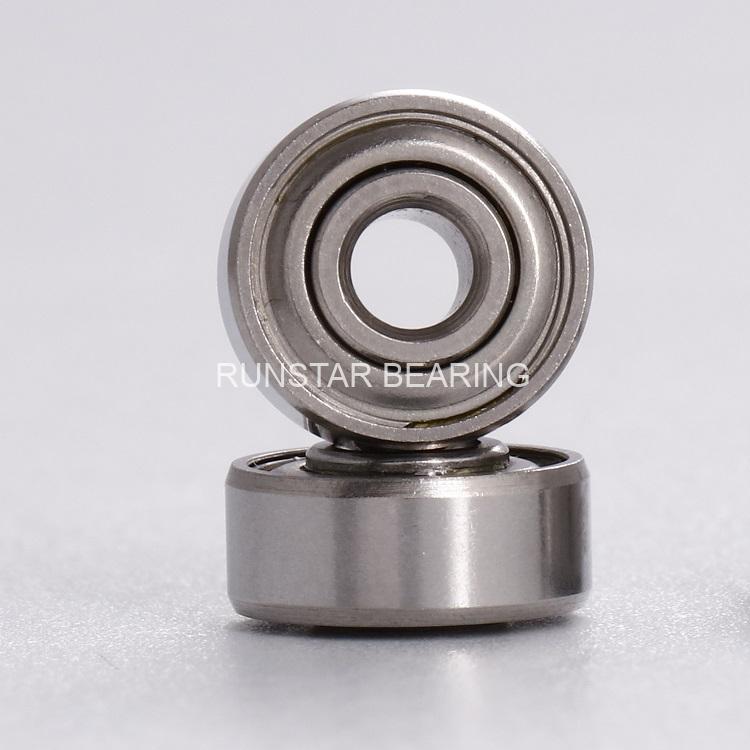

precision miniature bearing SR3-2RS EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SR3-2RS EE
Bearing type Ball
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 3/16″︱4.762mm
Outer diameter(D) 1/2″︱12.7mm
Width of outer diameter(C) 0.1960″︱4.978mm
Width of inner diameter(B) 0.2273″︱5.773mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Shields material Stainless steel 304
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 2.381mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 2.21
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr)  1107N
Static Load Rating (Cor)   391 N

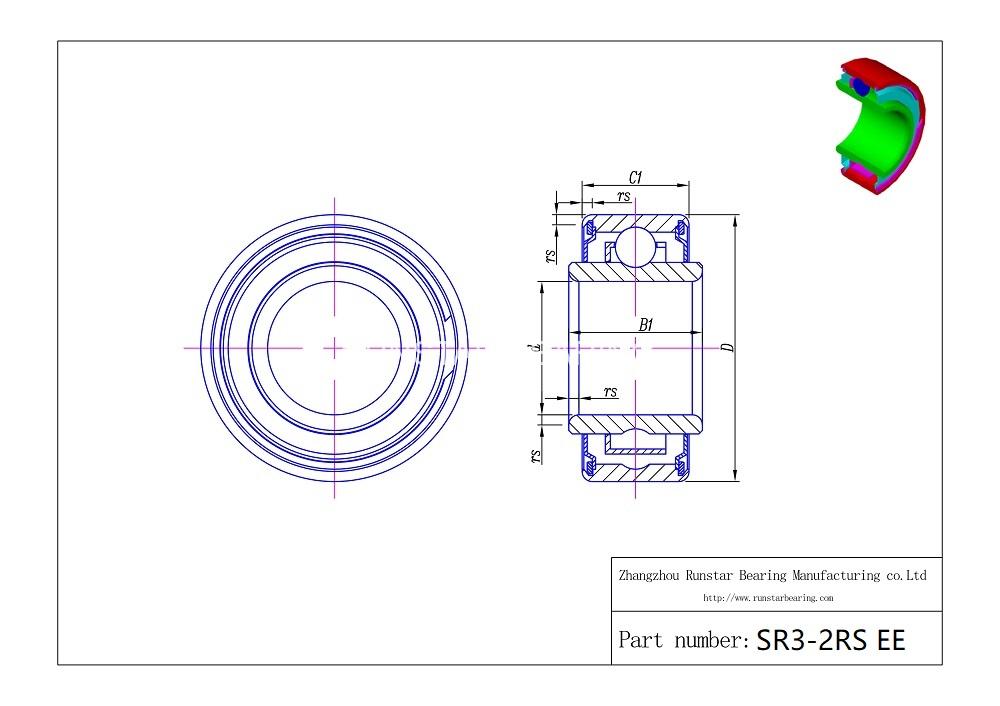

precision miniature bearing sr3 2rs ee d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SR3-2RS EE
