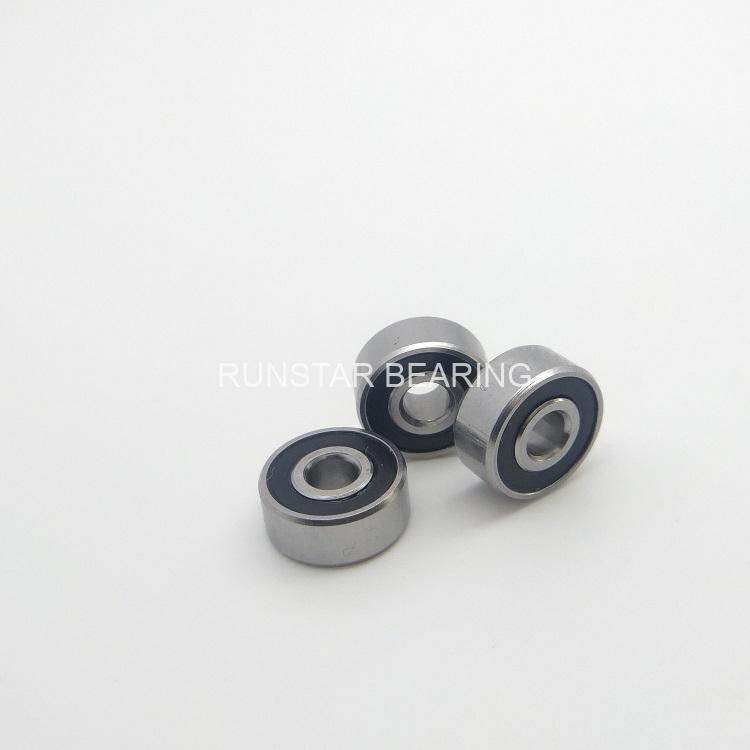

precision ball bearings SR2-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SR2-2RS
Bearing type Ball
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 1/8″︱3.175mm
Outer diameter(D) 3/8″︱9.525mm
Width(B) 5/32″︱3.967mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 1.588mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 1.37
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 538 N
Static Load Rating (Cor) 173  N
precision ball bearings sr2 2rs d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SR2-2RS SR-2-2RS SR2-2RS SR2-2RS SBR1/8B-2RS SR2-2RS
