| Part Number | R3 EE |
| Bearing type | Ball |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |

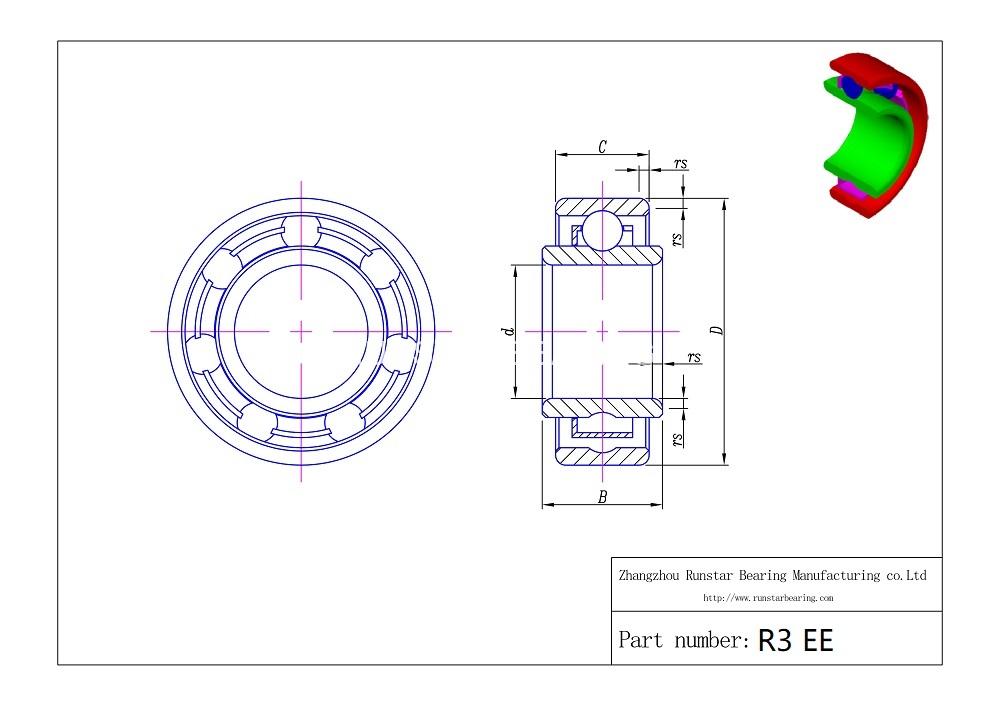

| Bore diameter(d) | 3/16″︱4.762mm |
| Outer diameter(D) | 1/2″︱12.7mm |
| Width of outer diameter(C) | 5/32″︱3.967mm |
| Width of inner diameter(B) | 3/16″︱4.762mm |
| material | Chrome steel(Gcr15) |
| ring material | Chrome steel(Gcr15) |
| cage material | Stainless steel 304 |
| ball material | Chrome steel(Gcr15) |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 2.381mm |
| BALL QTY | 7 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 2.21 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 1107N |
| Static Load Rating (Cor) | 391 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| R3 EE |
