miniature precision bearings MR126-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number MR126-2RS
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 6mm
Outer diameter(D) 12mm
Width(B)  4 mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)  1.588 mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.66
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 609 N
Static Load Rating (Cor)    236   N

Miniature precision bearings is also called precision miniature bearings,it is referred to miniature bearings with high precision. Usually,miniature precision bearings consist of inner ring,outer rings,cage,balls,grease,shields or rubber seals.

Compared with other rolling bearings, miniature precision bearings are characterized by simple structure, low friction resistance, high speed and  easy to use etcs, they can be used for applications that support moderate radial load or both moderate radial and axial load at the same time, and also for moderate  axial load. they can operate at very high speeds for some special applications such as dental turbine,the speed can be RPM400000 or even more.

There are open type,with shields or with rubber seals.

Runstar is a professional miniature precision bearings manufacturer in China, certified ISO9001:2015. We supply miniature prcision bearings from ABEC-1 to ABEC-9 for applications,the material could be chrome steel,stainless steel or hybrid ceramic for choice. Most of miniature precision bearings from Runstar are widely used in precision instrument,home application,medical device,massage equipment,sports equipment,textile machinery,woodworking machinery,motor,power tool,water pump,air compressor,fishing reel and Yoyo etcs.

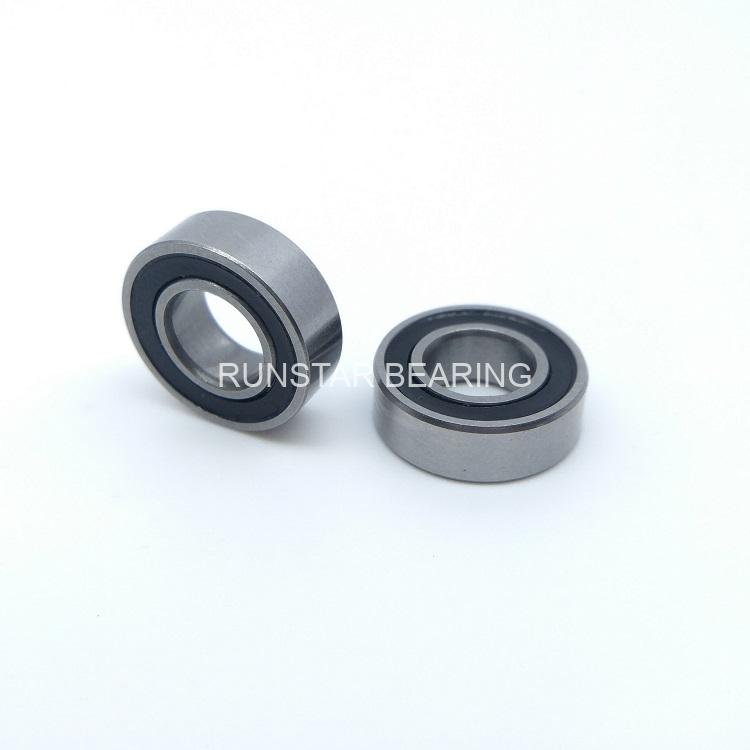

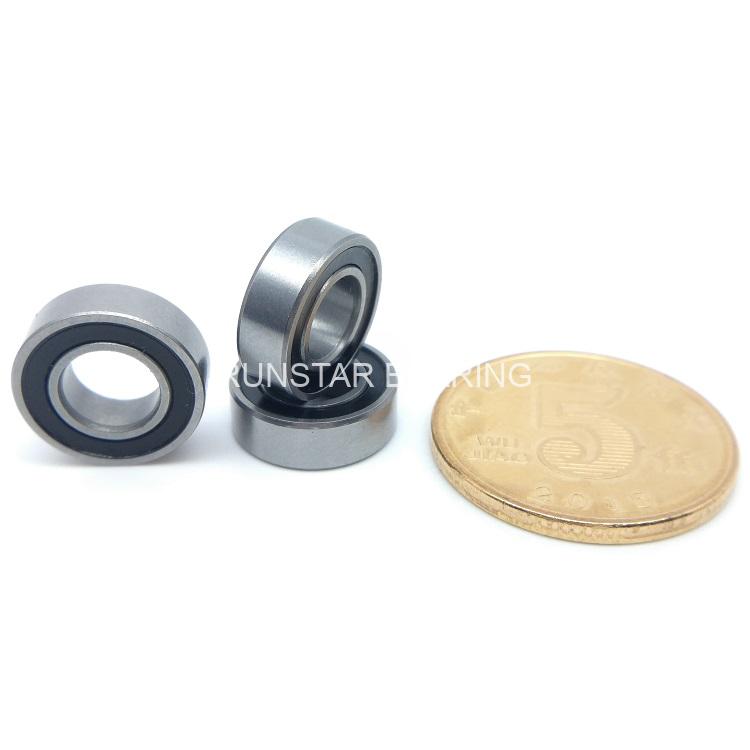

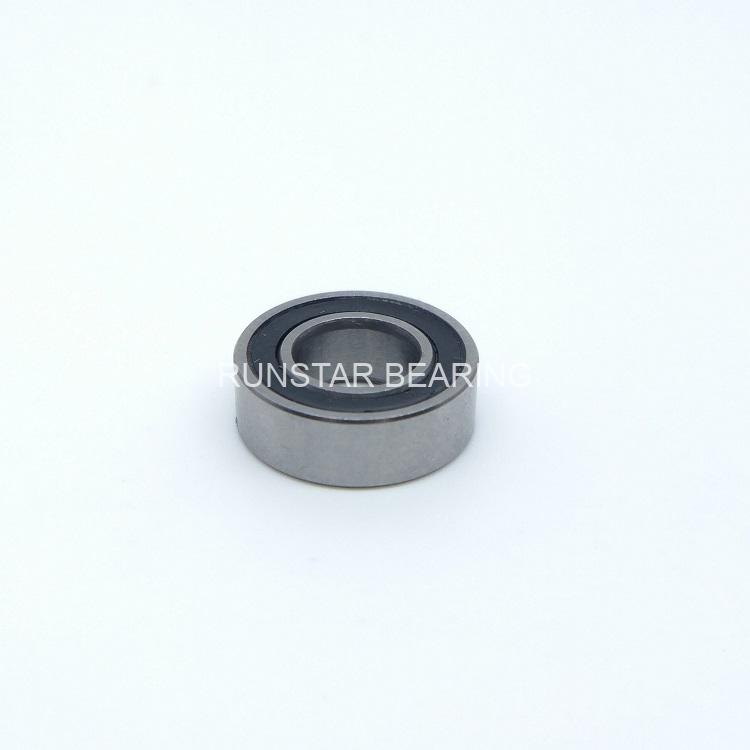

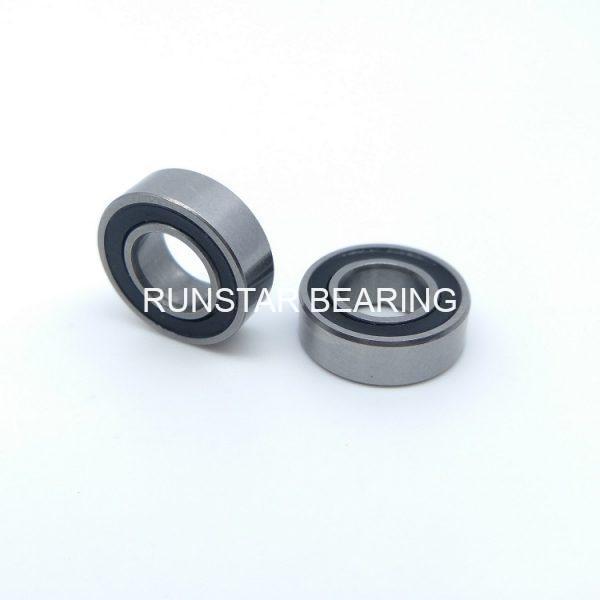

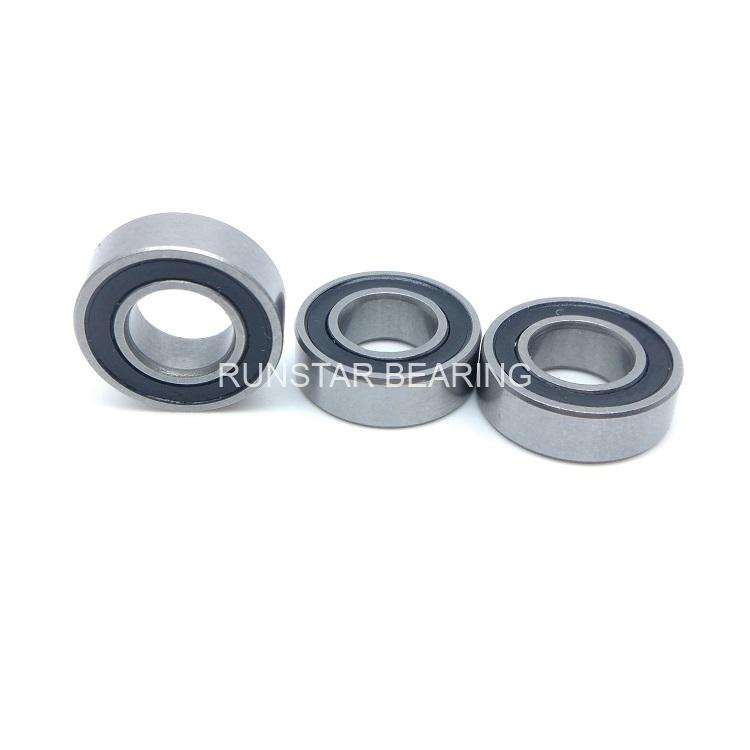

The item MR126-2RS is belong to miniature precision bearings with rubber seals in Runstar,it is with a inner diameter 6mm,a outer diameter 12mm,and a width 4mm.

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
MR126-2RS L-1260-2RS X6-2RS MR126-2RS
