| Part Number | MR106-2RS |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Rubber seals |
| Bore diameter(d) | 6mm |
| Outer diameter(D) | 10mm |
| Width(B) | 3 mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.2 mm |
| BALL QTY | 10 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.7 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 422 N |
| Static Load Rating (Cor) | 174 N |
Miniature precision bearings is also called precision miniature bearings, it is referred to miniature bearings or miniature ball bearings with very high precision.
Usually threre are metric and inch series of miniature precision bearings, they are widely used in the fields of aircraft model toys, household appliances, printers, copiers, steering gear, toy machinery and equipment, micro motors, cooling fans, instruments and meters, printers, smart homes, precision instruments, mechanical equipment, household appliances, medical instruments, fishing gear, mining machinery, elevator and accessories industry, precision machine tools etcs.
Zhangzhou Runstar is a professional manufacturer of miniature precision bearings since 2007,certified ISO9001:2015. We specilize in designing and manufacturing miniature precision bearings from ABEC-1 to ABEC-9 for industries, the material could be chrome steel or stainless steel for choice, as well as hybrid ceramic balls.

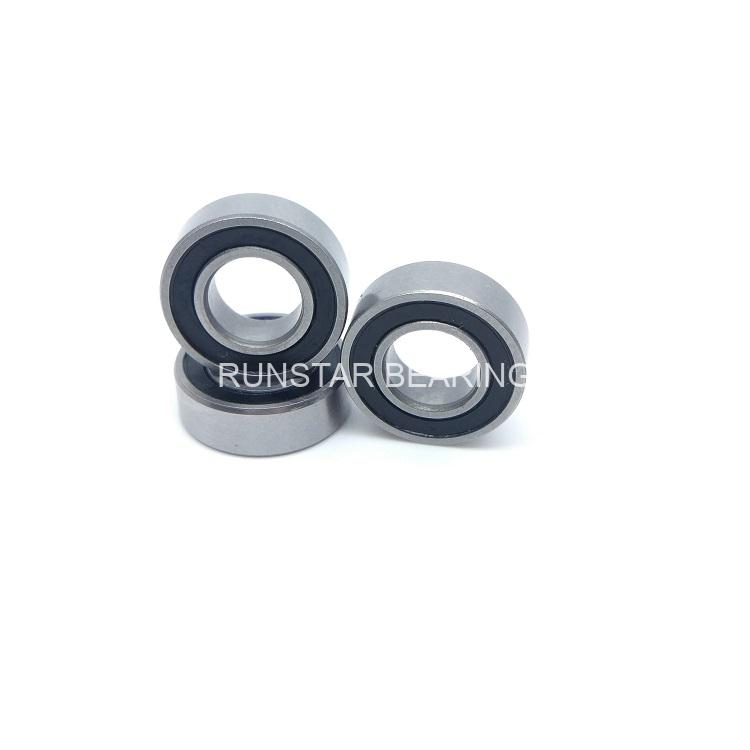

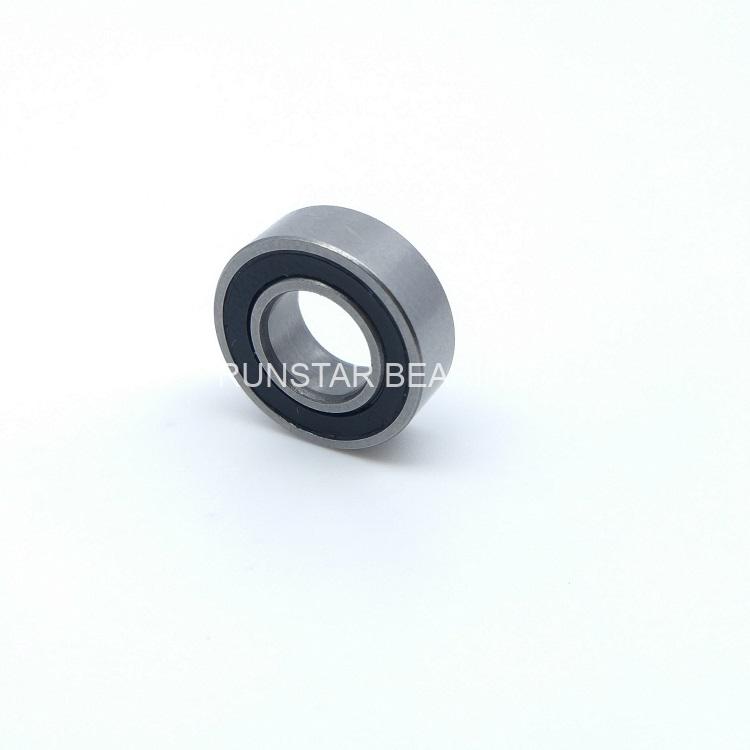

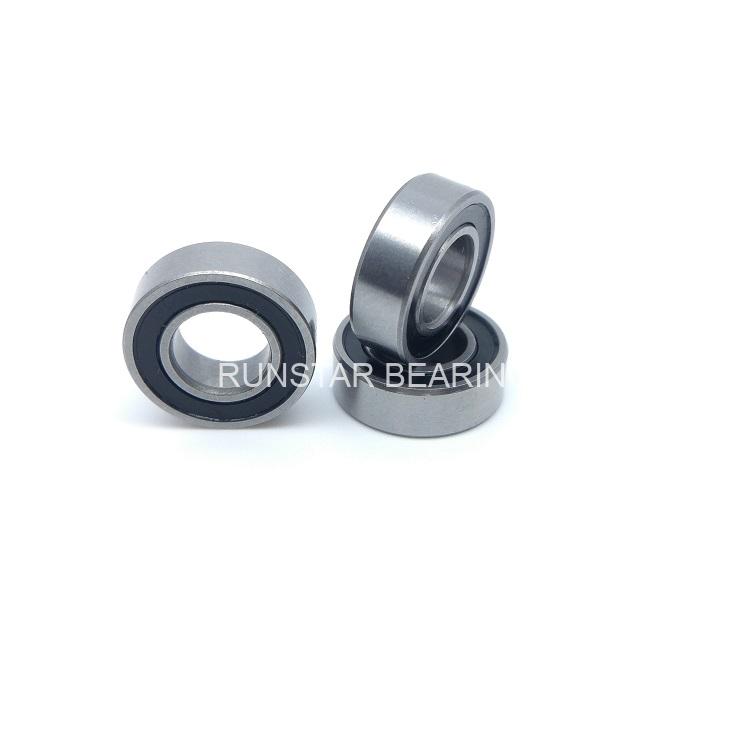

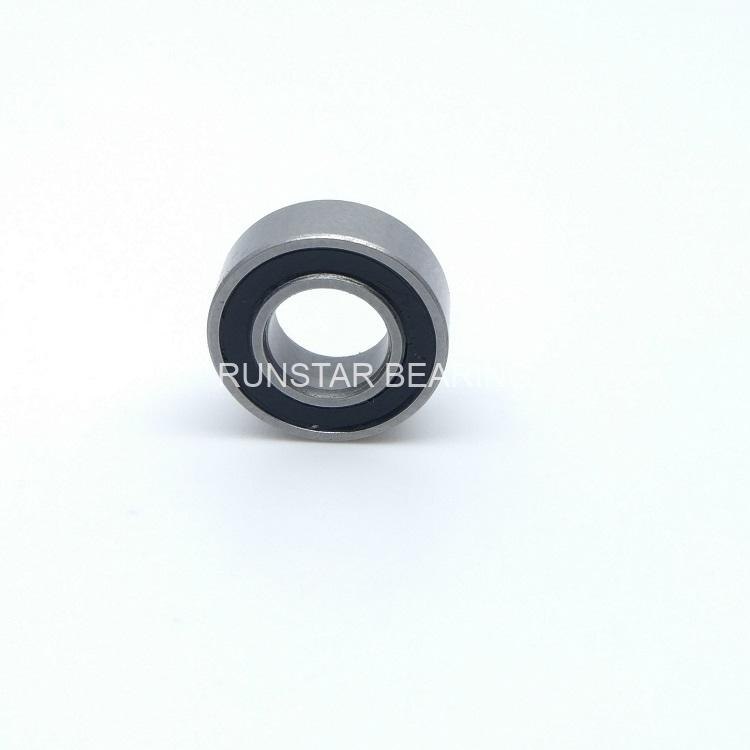

The item MR106-2RS is one of miniature precision bearings with a bore diameter 6mm,outer diameter 10mm and a width 4mm.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| MR106-2RS | L-1060-2RS | 676-2RS | 617/6-2RS | MR106-2RS |
