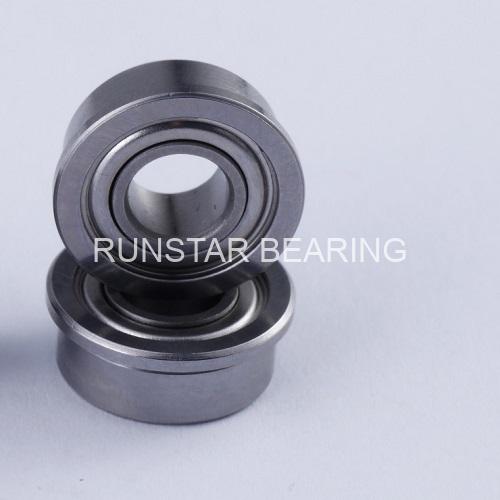

miniature flanged bearings SMF105ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SMF105ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 5mm
Outer diameter(D) 10mm
Flange OD 11.2mm
Width(B) 4mm
Flange thickness 0.8mm
radius 0.15mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.2mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.38
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 366N
Static Load Rating (Cor) 135 N
miniature flanged bearings smf105zz d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SMF105zz SLF-1050zz SMF105zz
