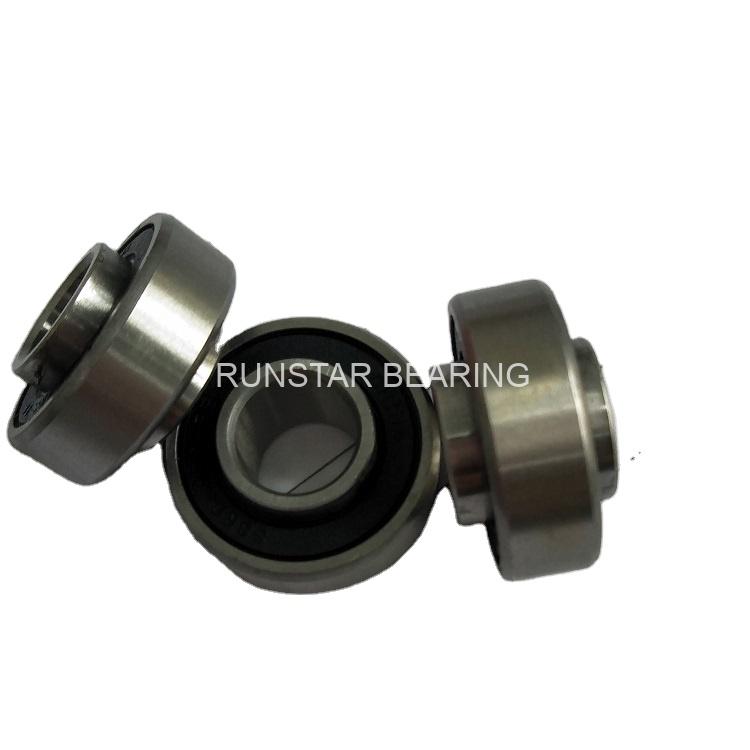

| Part Number |
SR156-2RS EE |
| Bearing type |
BALL |
| Structure |
Single Row |
| Load Direction |
Radial |
| Seal type |
Rubber seal |

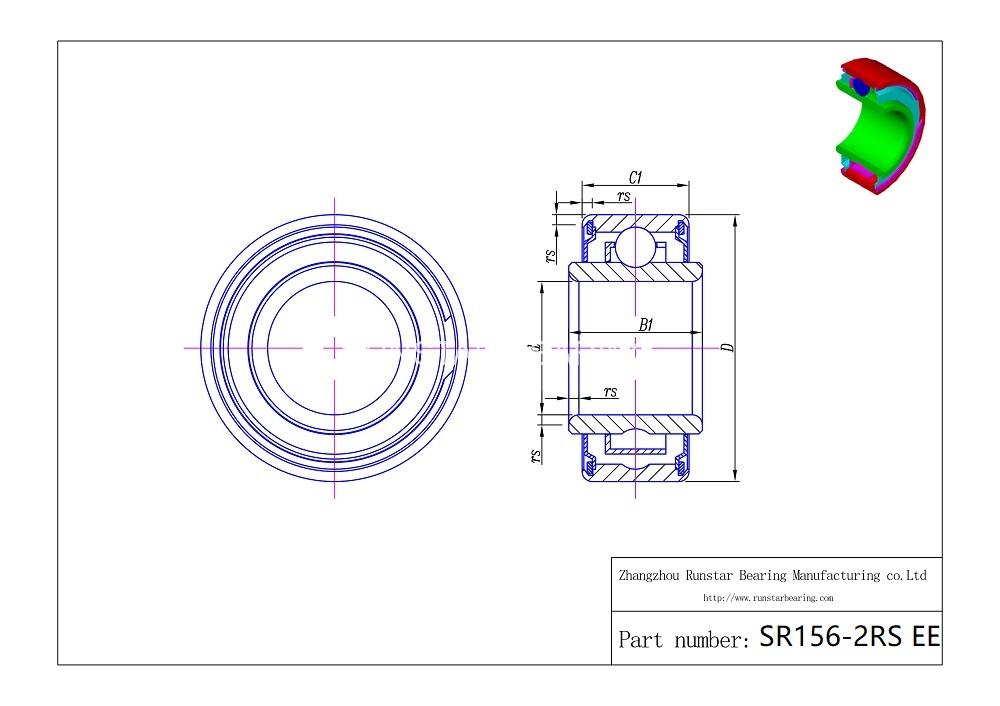

| Bore diameter(d) |
3/16″︱4.762mm |
| Outer diameter(D) |
5/16″︱7.938mm |
| Width of outer diameter(C1) |
1/8″︱3.175mm |
| Width of inner diameter(B1) |
5/32″︱3.969mm |
| material |
Stainless steel 440 C(9Cr18) |
| ring material |
Stainless steel 440 C(9Cr18) |
| cage material |
300 Series Stainless Steel |
| ball material |
Stainless steel 440 C(9Cr18) |
| Rubber material |
300 Series Stainless Steel |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
1mm |
| BALL QTY |
10 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
0.40 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
307 N |
| Static Load Rating (Cor) |
120 N |
