miniature extended inner ring bearing SFR155 EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SFR155 EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 5/32″︱3.969mm
Outer diameter(D) 5/16″︱7.938mm
Flange OD(Df) 0.3590″︱9.1186mm
Width of outer diameter(C) 0.1094″︱2.779mm
Width of inner diameter(B) 0.1406″︱3.571mm
Flange thickness (Bf) 0.023″︱0.5842mm
radius (rs) 0.1mm
material Stainless steel 440C(9CR18)
ring material Stainless steel 440C(9CR18)
cage material 300 Series Stainless Steel
ball material Stainless steel 440C(9CR18)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1mm
BALL QTY 10
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.56
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 306N
Static Load Rating (Cor) 120N

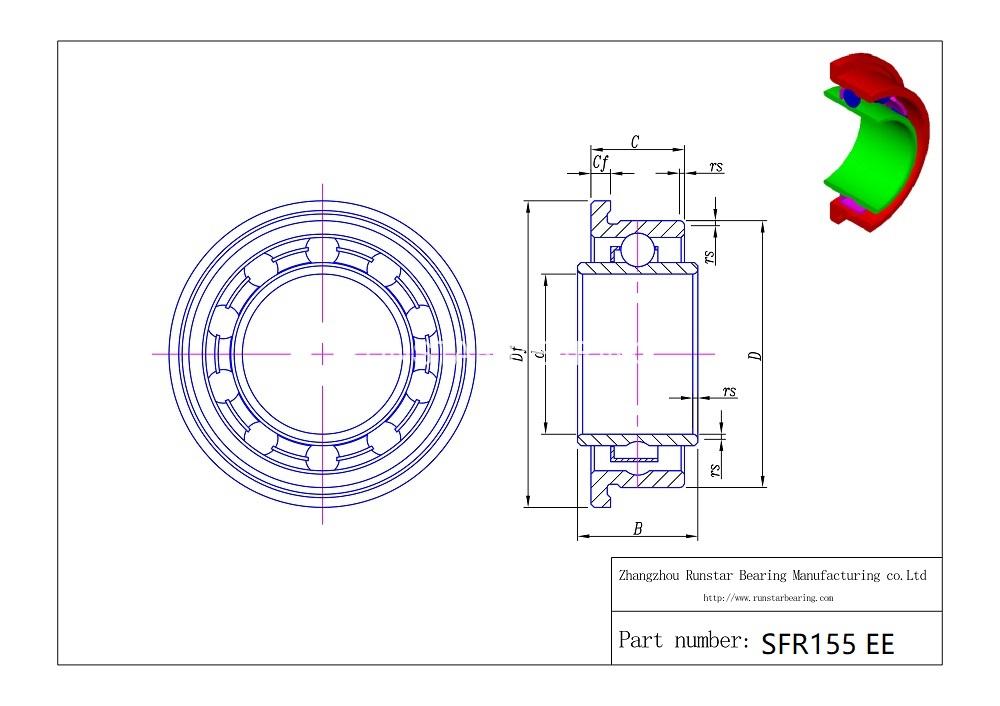

miniature extended inner ring bearing sfr155 ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SFR155 EE
