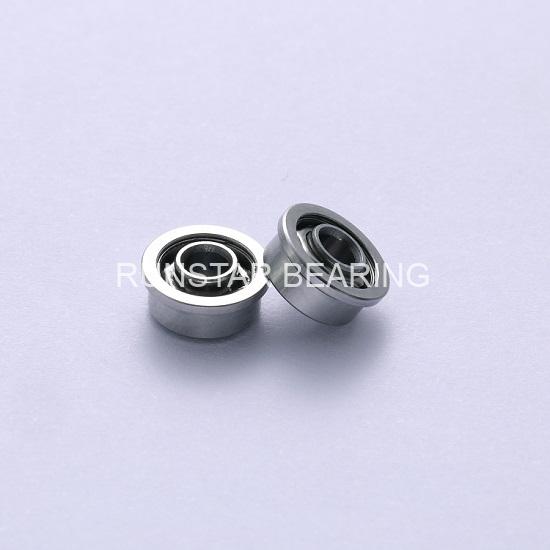

miniature bearings extended inner ring SFR188 EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SFR188 EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 1/4″︱6.35mm
Outer diameter(D) 1/2″︱12.7mm
Flange OD(Df) 0.547″︱13.8938mm
Width of outer diameter(C) 1/8″︱3.175mm
Width of inner diameter(B) 5/32″︱3.969mm
Flange thickness (Bf) 0.023″︱0.5842mm
radius (rs) 0.15mm
material Stainless steel 440C(9CR18)
ring material  Stainless steel 440C(9CR18)
cage material 300 Series Stainless Steel
ball material  Stainless steel 440C(9CR18)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 2mm   (1.588MM*10 PCS)
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.71
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 920N
Static Load Rating (Cor) 355N
miniature bearings extended inner ring sfr188 ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SFR188 EE
