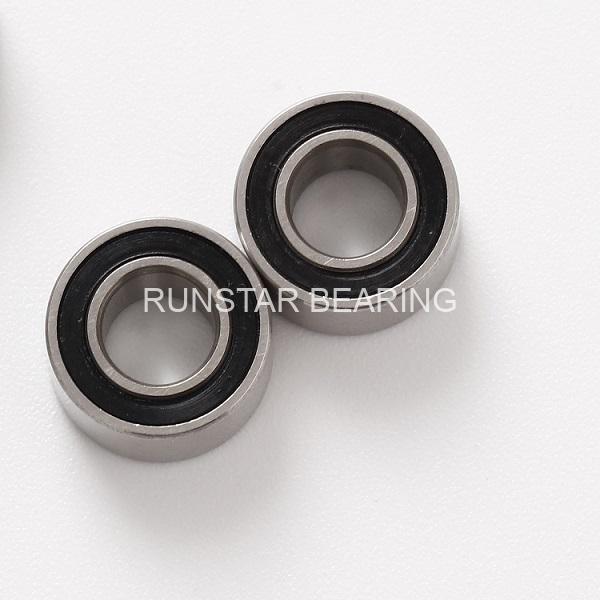

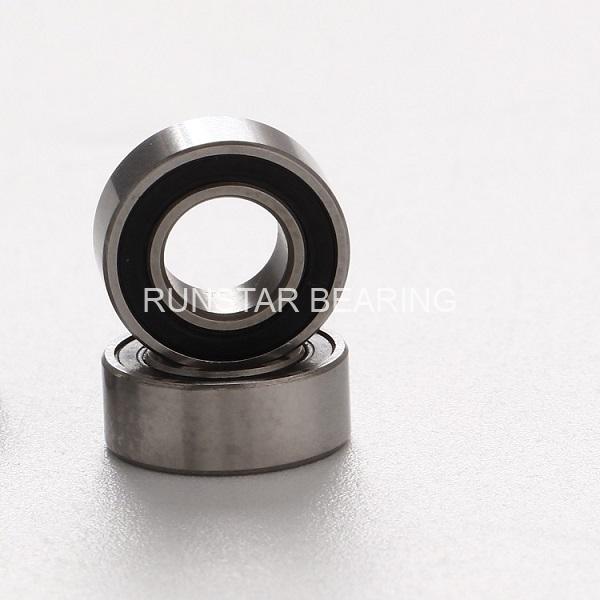

Part Number | 604-2RS |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | Rubber seals |
Bore diameter(d) | 4mm |
Outer diameter(D) | 12mm |
Width(B) | 4 mm |
material | Chrome steel 52100(Gcr15) |
ring material | Chrome steel 52100(Gcr15) |
cage material | 300 Series Stainless Steel |
ball material | Chrome steel 52100(Gcr15) |
shields material | 300 Series Stainless Steel |
Grade | ABEC-1(ABEC-3,5,7,9 available) |
Clearance | C0(C2,C3,C4,C5 available) |
BALL SIZE(mm) | 2mm |
BALL QTY | 7 |
lubrication | grease or oil |
Temperature Range | -30℃~130℃ |
weight(g) | 2.34 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 814 N |
Static Load Rating (Cor) | 280 N |
Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
604-2RS | R-1240-2RS | 604-2RS | 604-2RS | 604-2RS |
