| Part Number | 693ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 3 mm |
| Outer diameter(D) | 8 mm |
| Width(B) | 4 mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(ABEC-3,5,7-9 available) |
| Clearance | C0(C2,C3,C4,C5) |
| BALL SIZE(mm) | 1.2 mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.80 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 474 N |
| Static Load Rating (Cor) | 144 N |

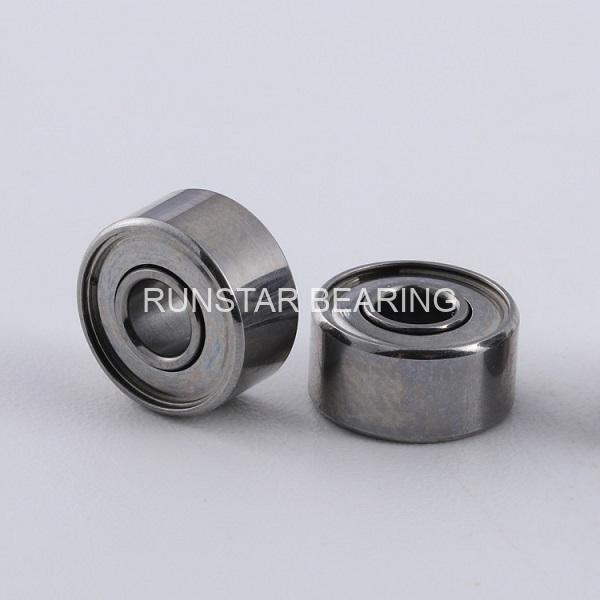

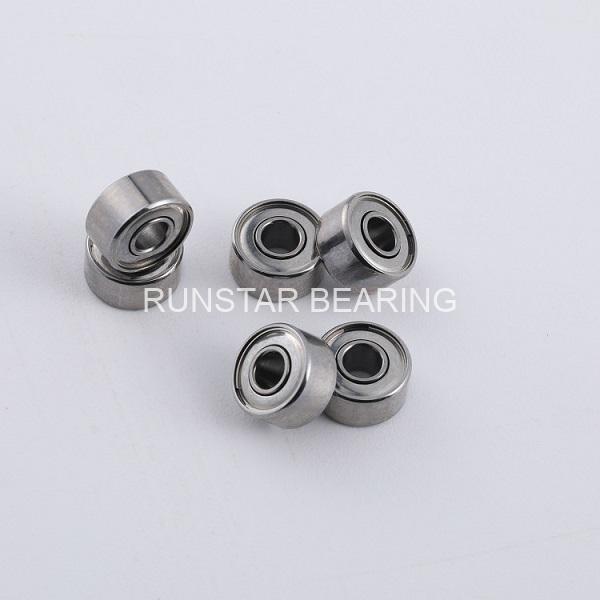

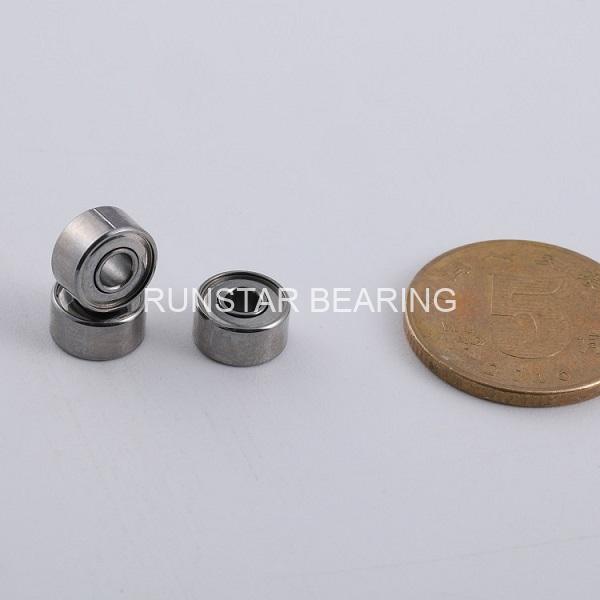

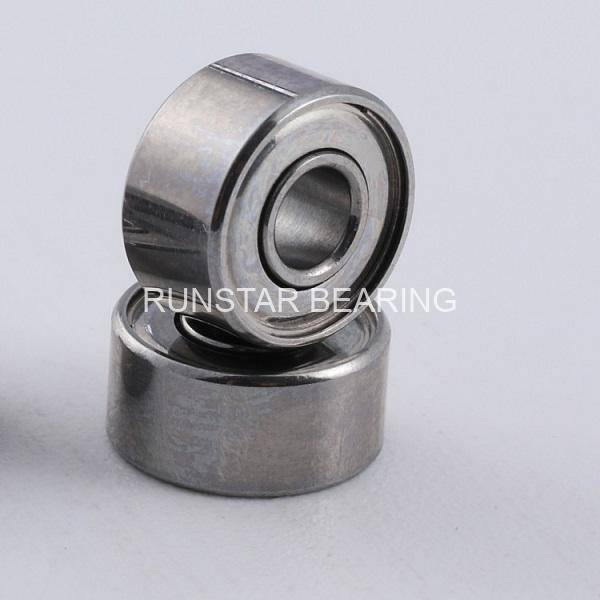

Miniature ball bearings are also called miniture bearings,mini ball bearing or mini bearings in different places. Miniature ball bearings are one of the classifications under ball bearings .The item 693zz is belong to miniature ball bearings with a bore size 3mm, a outer diameter 8mm and a width 4mm.Runstar is a professional miniature ball bearings manufacturer in China,certified ISO9001:2015. Miniature ball bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic, with a precision tolerance from ABEC-1 to ABEC 9 ,customized miniature ball bearings are accepted for special application in Runstar.Miniature ball bearings 693ZZ from runstar are widely used in the fields of precision instrument,micro motor,home application,medical device,massage equipment,sports equipment,textile machinery,woodworking machinery,motor,power tool,water pump,air compressor,fishing reel and Yoyo etcs.
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| 693zz | L-830zz | w693zz | 639/3zz | 693-2z | 693zz |
