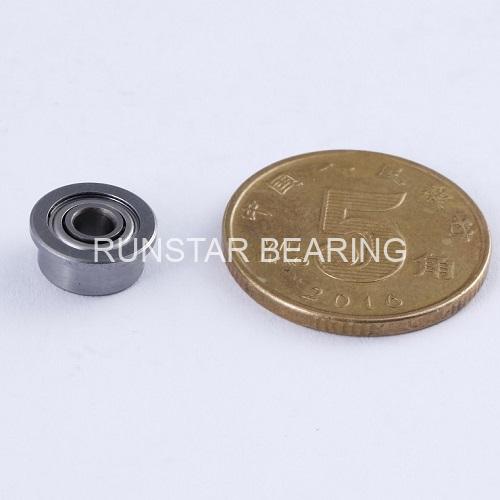

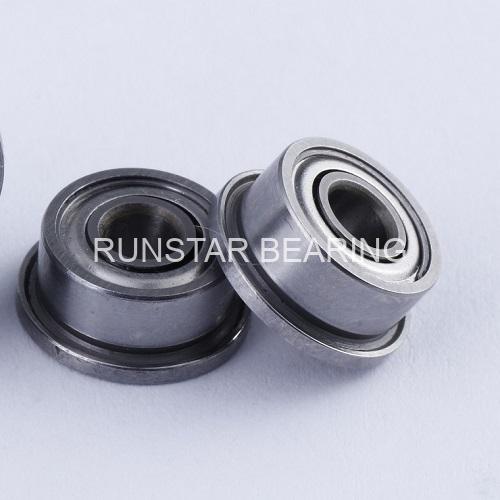

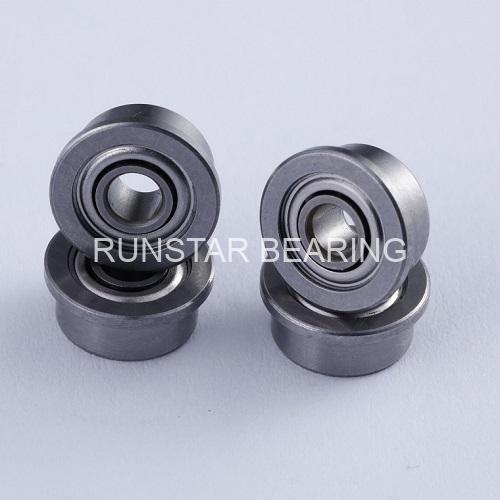

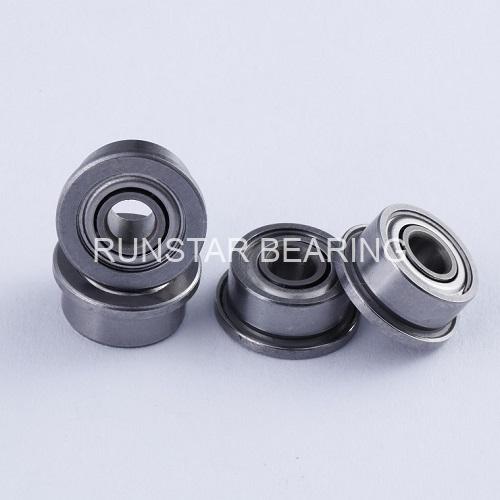

miniature ball bearing SF693ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SF693ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 3mm
Outer diameter(D) 8mm
Flange OD 9.5mm
Width(B) 4mm
Flange thickness 0.9mm
radius 0.15mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.2mm
BALL QTY 7
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.94
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 474N
Static Load Rating (Cor) 144 N
miniature ball bearing sf693zz d

Miniature ball bearings are also called miniture bearings,mini ball bearing or mini bearings in different places. Miniature ball bearings are one of the classifications under ball bearings . Runstar is a professional miniature ball bearings manufacturer in China,certified ISO9001:2015. Miniature ball bearings from Runstar can be chrome steel(Gcr15),stainless steel(440 or 420) or hybrid ceramic, with a precision tolerance from ABEC-1 to ABEC 9 ,customized miniature ball bearings are accepted for special application in Runstar.Miniature ball bearings from runstar are widely used in the fields of precision instrument,micro motor,home application,medical device,massage equipment,sports equipment,textile machinery,woodworking machinery,motor,power tool,water pump,air compressor,fishing reel and Yoyo etcs.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SF693zz SRF-830zz SFL693zz SFX3zz SF693zz SF693zz
