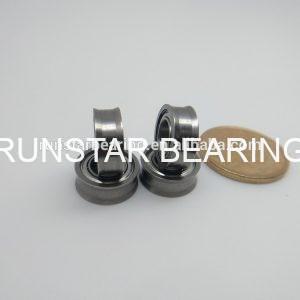

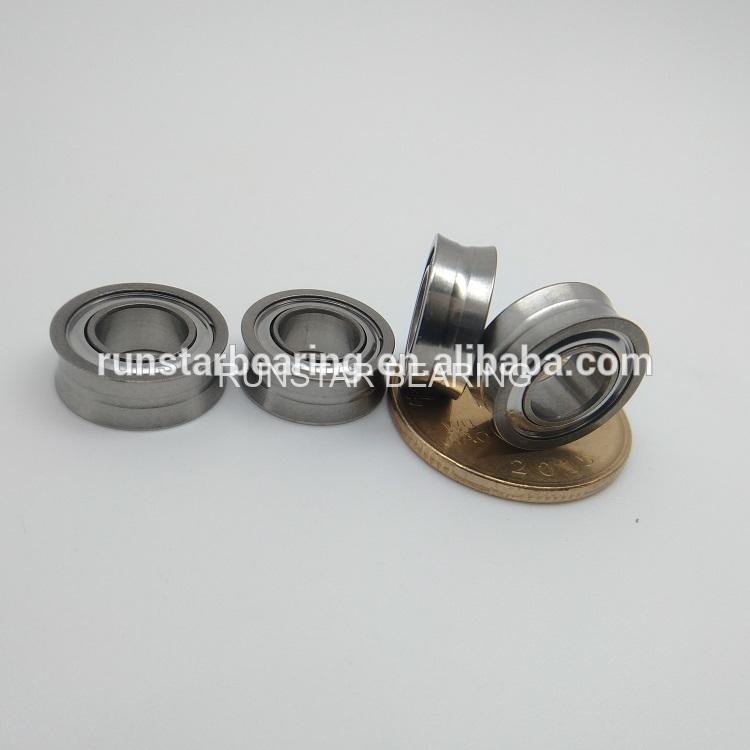

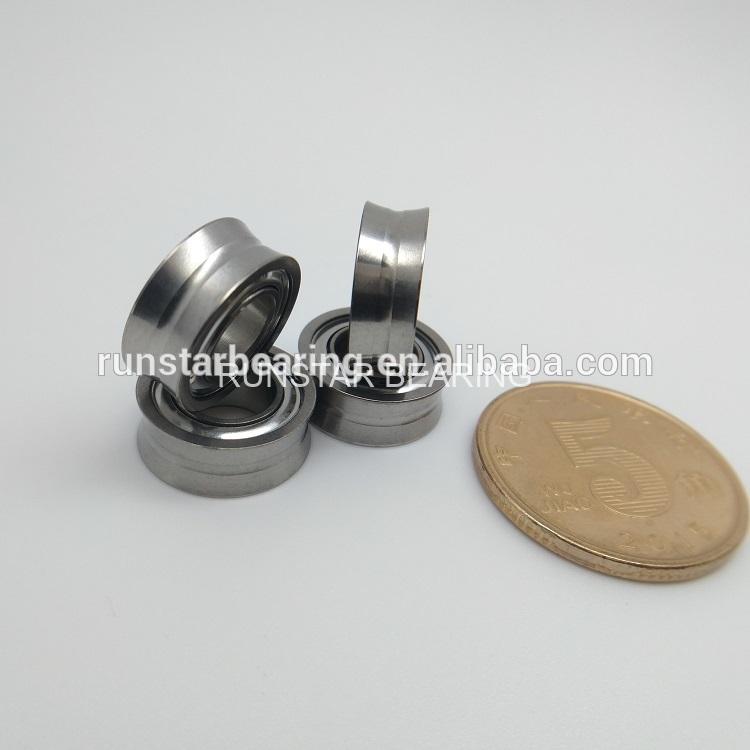

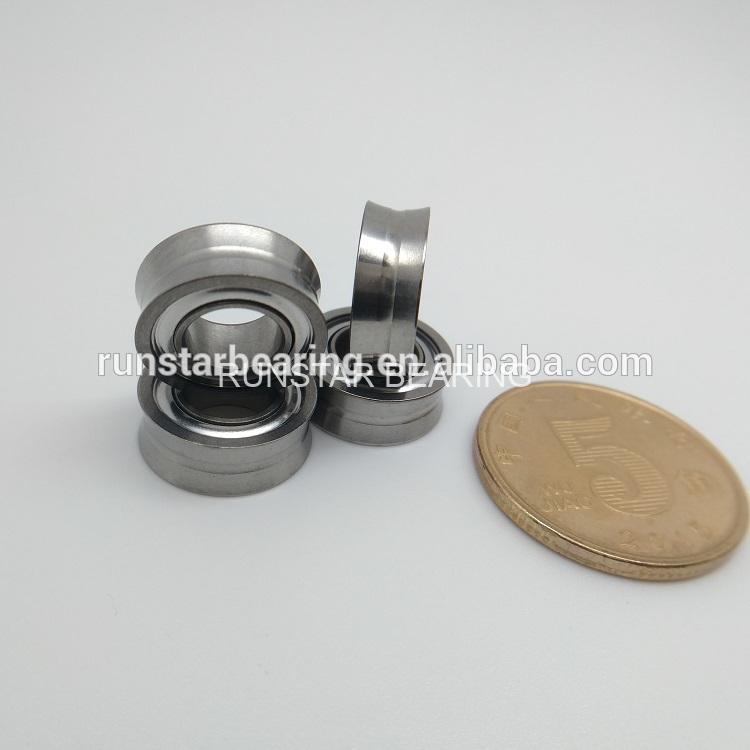

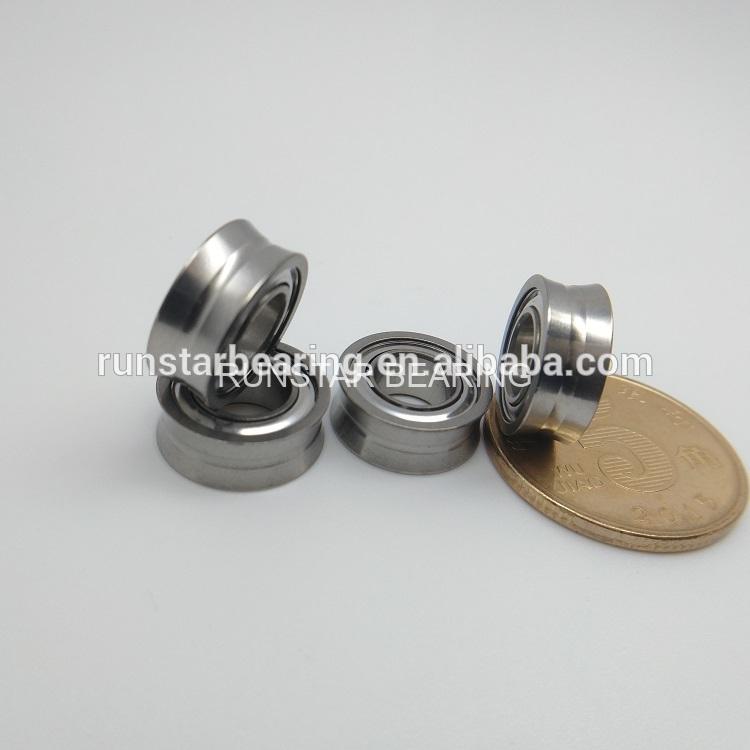

mini yoyo bearing R188VZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number R188VZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 1/4″︱6.35mm
Outer diameter(D) 1/2″︱12.7mm
Width(B) 3/16″︱4.762mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)  1.588mm
BALL QTY 10
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.6
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 920 N
Static Load Rating (Cor)  355  N
mini yoyo bearing r188vzz

we design and make high speed yoyo bearing with  different shapes and material for choices.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
R188Vzz
