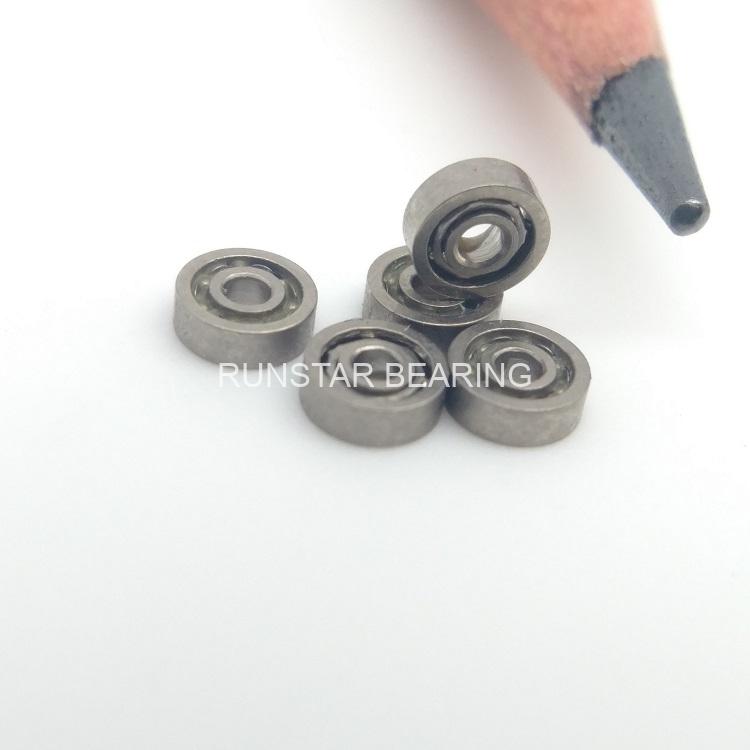

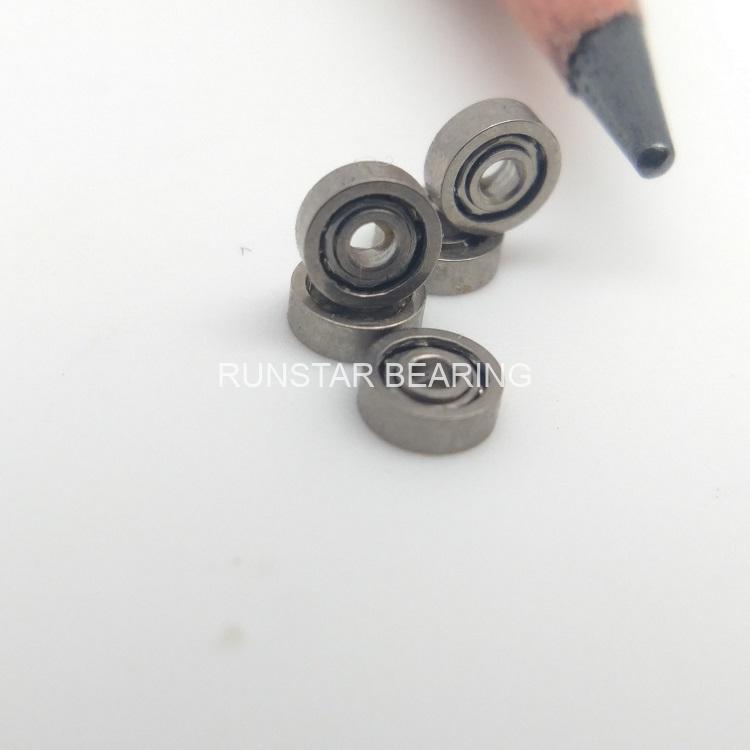

Part Number | 681X |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | open |
Bore diameter(d) | 1.5mm |
Outer diameter(D) | 4mm |
Width(B) | 1.2mm |
material | Chrome steel 52100(Gcr15) |
ring material | Chrome steel 52100(Gcr15) |
cage material | 300 Series Stainless Steel |
ball material | Chrome steel 52100(Gcr15) |
shields material | 300 Series Stainless Steel |
Grade | ABEC-1 |
Clearance | C0 |
BALL SIZE(mm) | 0.6mm |
BALL QTY | 7 |
lubrication | grease or oil |
Temperature Range | -30℃~130℃ |
weight(g) | 0.1 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 95 N |
Static Load Rating (Cor) | 26 N |
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
681X | L-415 | 68/1.5 | AX1.5 | 68/1.5 | 681X |
