| Part Number | MR83ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 3 mm |
| Outer diameter(D) | 8 mm |
| Width(B) | 3 mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(ABEC-3,5,7-9 available) |
| Clearance | C0(C2,C3,C4,C5) |
| BALL SIZE(mm) | 1.2 mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.67 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 336 N |
| Static Load Rating (Cor) | 113 N |
Micro bearings is also micro ball bearings,it is same as miniature ball bearings and miniature bearings, and it is referred to miniature ball bearings with a bore diameter less than 10mm.

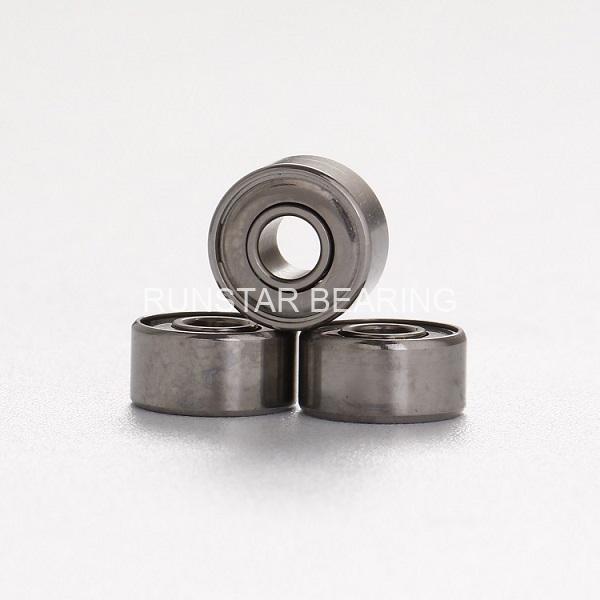

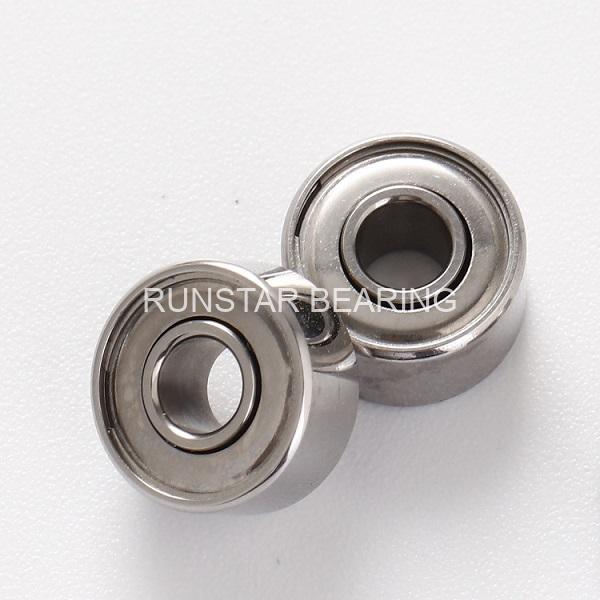

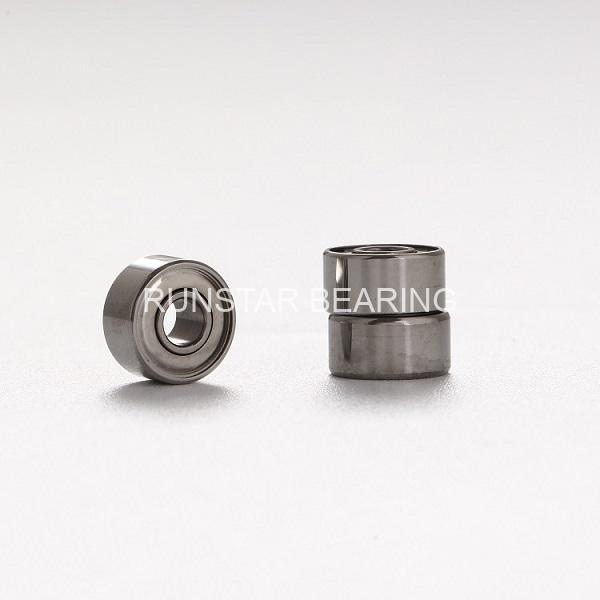

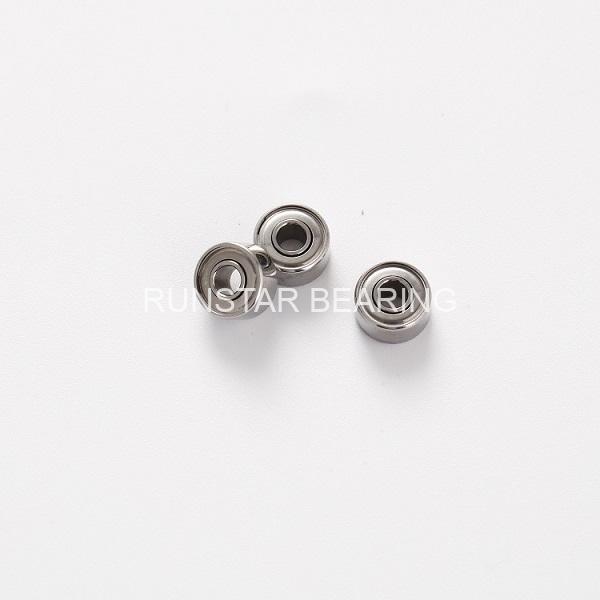

Runstar has full series of micro bearings,and the item MR83ZZ is one of pop micro bearings, t is a metric series of micro ball bearings with shields, It is with a bore diameter 3mm,a outer diameter 8mm, and a width 3mm, and it is designed to support the dynamic load rating 395 N.
Established in 2007, Zhangzhou Runstar Bearings Manufacturing Co.,Ltd is a professional micro ball bearings manufacturer for industries in China. Equipped with advanced production line and inspection instruments, Runstar have our own factory of nearly 5000 square meters and we have our own professional R&D teams to supply and solve the solutions for industries.we design and manufacture metric and inch of micro ball bearings with a grade from ABEC-1 to ABEC-9,the material of micro bearing from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All micro ball bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.
We export micro ball bearings wordly,and they are well-known for high precision,high speed,low voice and long life, most of them are widely used in precision instrument,home application,medical device,massage equipment,sports equipment, textile machinery,woodworking machinery,motor,power tool,water pump,air compressor,fishing reel and Yoyo etcs.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| MR83ZZ | X3ZZ | MR83ZZ |
