metric flange bearings MF63

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number MF63
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type OPEN
Bore diameter(d) 3mm
Outer diameter(D) 6mm
Flange OD 7.2mm
Width(B) 2mm
Flange thickness 0.6mm
radius 0.1mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 0.8mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.2
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 178N
Static Load Rating (Cor) 59  N
metric flange bearings mf63 d

    Metric Flange Bearings is flange bearings with metric dimention,we have both metric flange bearings and inch flange bearings in Runstar. We have full size of metric flange bearings for choices.

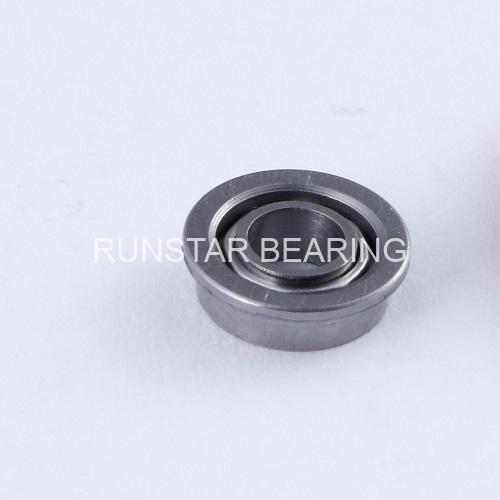

MF63 is one of metric flange bearings with open type in Runstar, it is with a bore size 3mm,a outer diameter 6mm,and a width 2mm, it can support dynamic load rating 209 N, and it is a very fomous size for rc hobby in market.

    Established in 2007, Zhangzhou Runstar Bearings Manufacturing Co.,Ltd is a professional metric flange bearings manufacturer for industries in China. Equipped with advanced production line and inspection instruments, Runstar have our own factory of nearly 5000 square meters and we have our own professional R&D teams to supply and solve the solutions for industries.we design and manufacture metric flange bearings with a grade from ABEC-1 to ABEC-9,the material of metric flange bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All metric flange bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
MF63 LF-630 MF63
