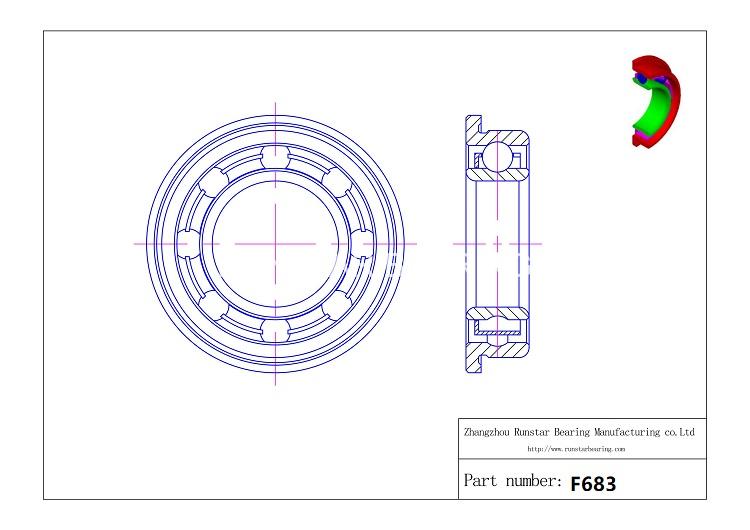

| Part Number | F683 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | OPEN |
| Bore diameter(d) | 3mm |
| Outer diameter(D) | 7mm |
| Flange OD | 8.1mm |
| Width(B) | 2mm |
| Flange thickness | 0.5mm |
| radius | 0.1mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1mm |
| BALL QTY | 8 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.32 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 264N |
| Static Load Rating (Cor) | 90 N |
Metric Flange Bearings is flange bearings with metric dimention,we have both metric flange bearings and inch flange bearings in Runstar. We have full size of metric flange bearings for choices.

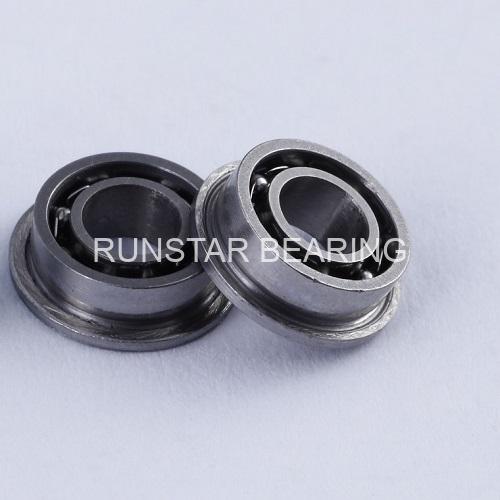

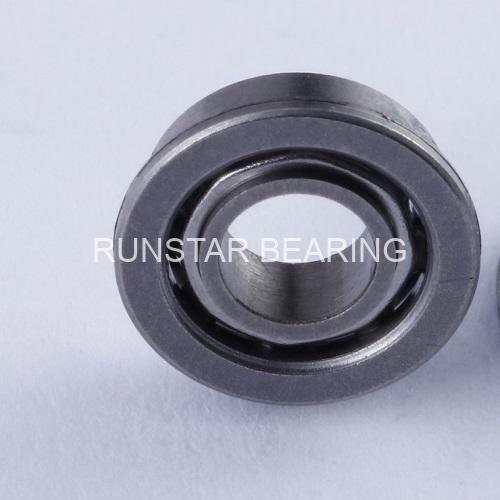

F683 is one of metric flange bearings with open type in Runstar, it is with a bore size 3mm,a outer diameter 7mm,and a width 2mm, it can support dynamic load rating 311 N, and it is a very fomous size for rc hobby in market.
Established in 2007, Zhangzhou Runstar Bearings Manufacturing Co.,Ltd is a professional metric flange bearings manufacturer for industries in China. Equipped with advanced production line and inspection instruments, Runstar have our own factory of nearly 5000 square meters and we have our own professional R&D teams to supply and solve the solutions for industries.we design and manufacture metric flange bearings with a grade from ABEC-1 to ABEC-9,the material of metric flange bearings from Runstar can be chrome steel,stainless steel or hybrid ceramic for choice. All metric flange bearings from Runstar are strictly controlled under ISO9001:2015,with RoHs and REACH compliance.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F683 | LF-730 | FL683 | FAX3 | F683 | F683 |
