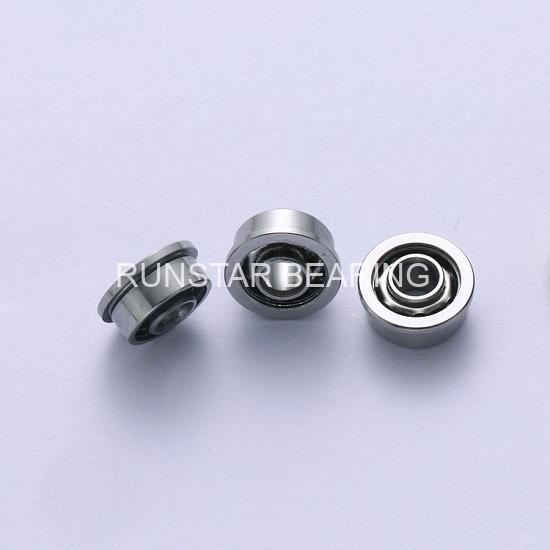

| Part Number |
SFR3 EE |
| Bearing type |
BALL |
| Structure |
Single Row |
| Load Direction |
Radial |
| Seal type |
Open |
| Bore diameter(d) |
3/16″︱4.762mm |
| Outer diameter(D) |
1/2″︱12.7mm |
| Flange OD(Df) |
0.565″︱14.351mm |
| Width of outer diemater(C) |
5/32″︱3.967mm |
| Width of inner diameter(B) |
3/16″︱4.762mm |
| Flange thickness (Bf) |
0.042″︱1.0668mm |
| radius (rs) |
0.3mm |
| material |
Stainless steel 440C(9CR18) |
| ring material |
Stainless steel 440C(9CR18) |
| cage material |
300 Series Stainless Steel |
| ball material |
Stainless steel 440C(9CR18) |
| shields material |
300 Series Stainless Steel |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
2.381mm |
| BALL QTY |
7 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
2.5 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
1107N |
| Static Load Rating (Cor) |
391N |
