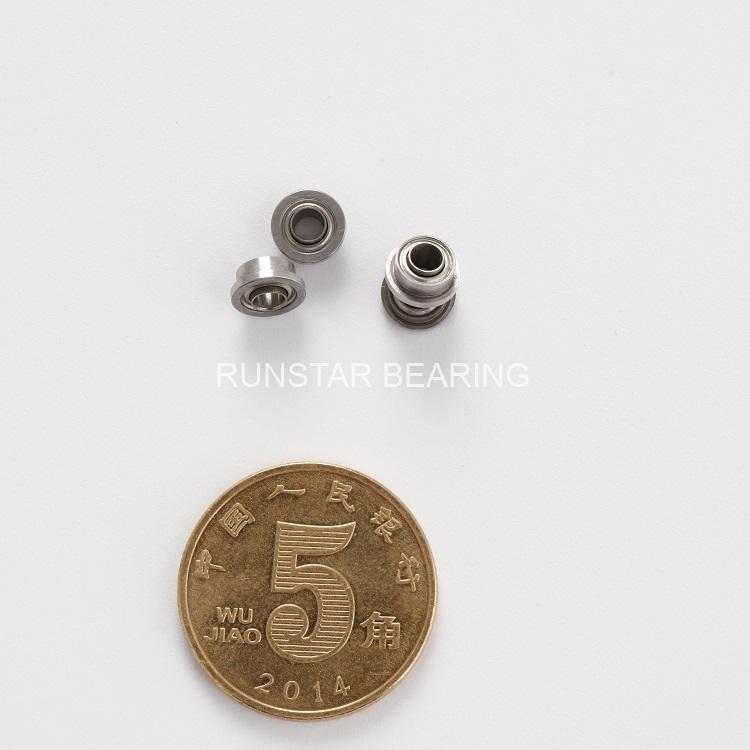

| Part Number |
FR133ZZ EE |
| Bearing type |
BALL |
| Structure |
Single Row |
| Load Direction |
Radial |
| Seal type |
Shields |
| Bore diameter(d) |
3/32″︱2.381mm |
| Outer diameter(D) |
3/16″︱4.762mm |
| Flange OD(Df) |
0.2340″︱5.9436mm |
| Width of outer diameter(C) |
0.0937″︱2.38mm |
| Width of inner diameter(B) |
1/8″︱3.175mm |
| Flange thickness (Bf) |
0.031″︱0.7874mm |
| radius (rs) |
0.1mm |
| material |
Chrome steel 52100(Gcr15) |
| ring material |
Chrome steel 52100(Gcr15) |
| cage material |
300 Series Stainless Steel |
| ball material |
Chrome steel 52100(Gcr15) |
| shields material |
300 Series Stainless Steel |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
0.8mm |
| BALL QTY |
7 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
0.21 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
125N |
| Static Load Rating (Cor) |
44N |
