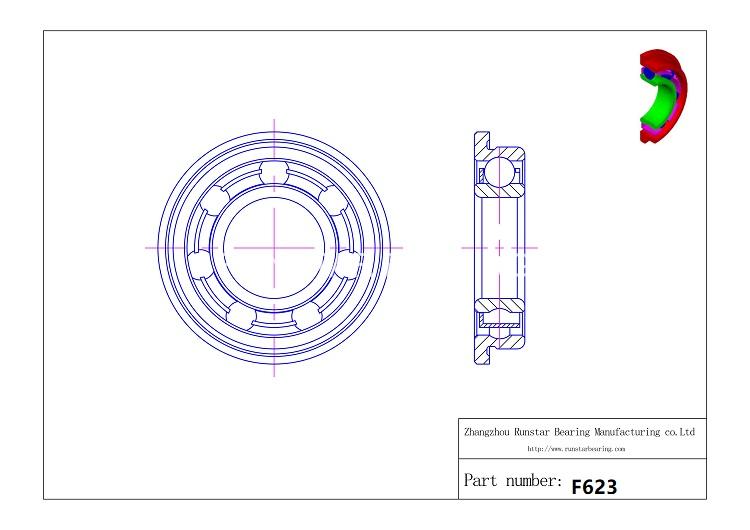

| Part Number | F623ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 3mm |
| Outer diameter(D) | 10mm |
| Flange OD | 11.5mm |
| Width(B) | 4mm |
| Flange thickness | 1mm |
| radius | 0.15mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.588mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 1.65 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 536N |
| Static Load Rating (Cor) | 175 N |

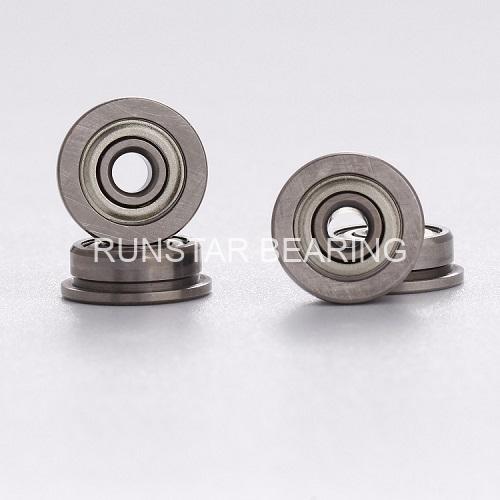

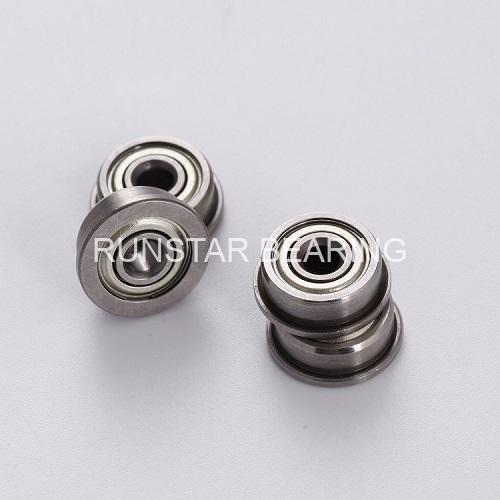

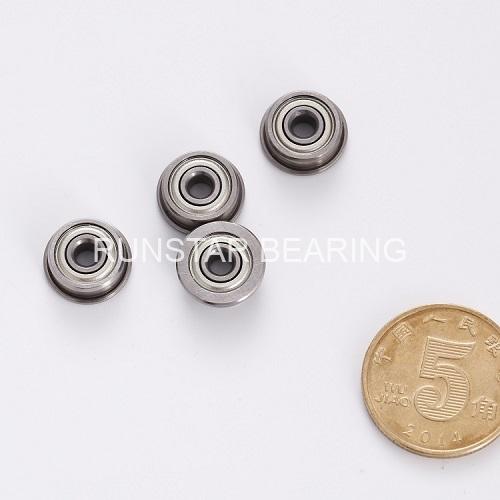

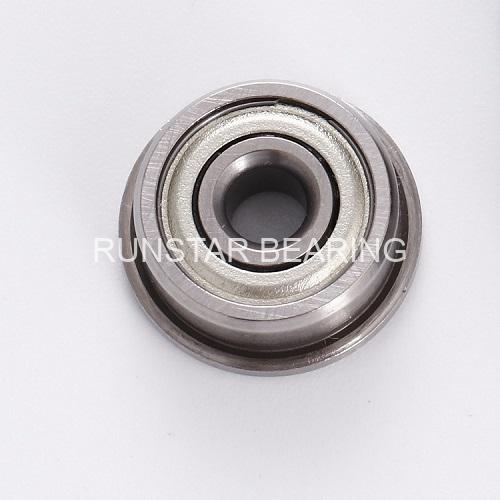

F623zz Bearing is a miniature flange bearings with chrome steel,it is with a bore size 3mm,a outer diameter 10mm,a width 4mm and a flange width 1mm,usually there are three types for F623ZZ bearings,they are open type,with shields and with rubber seals. F623ZZ is belong to a miniature flanged ball bearings with shields, it can keep from dust into bearings.F623zz bearing are very pop in industry application.
Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is a professional F623ZZ bearing factory since 2007,we design and manufacture F623zz bearing from ABEC-1 to ABEC-7 for industries, the material of F623zz bearing can be chrome steel,stainless steel or hybrid ceramic for choices. F623zz bearings with hybrid ceramic balls can improve the speed greatly and decrease the friction and weight greatly.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F623zz | RF-1030zz | FL623zz | F623zz | F623zz | F623zz |
