Part Number | SFR6-2RS EE |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | Rubber seals |

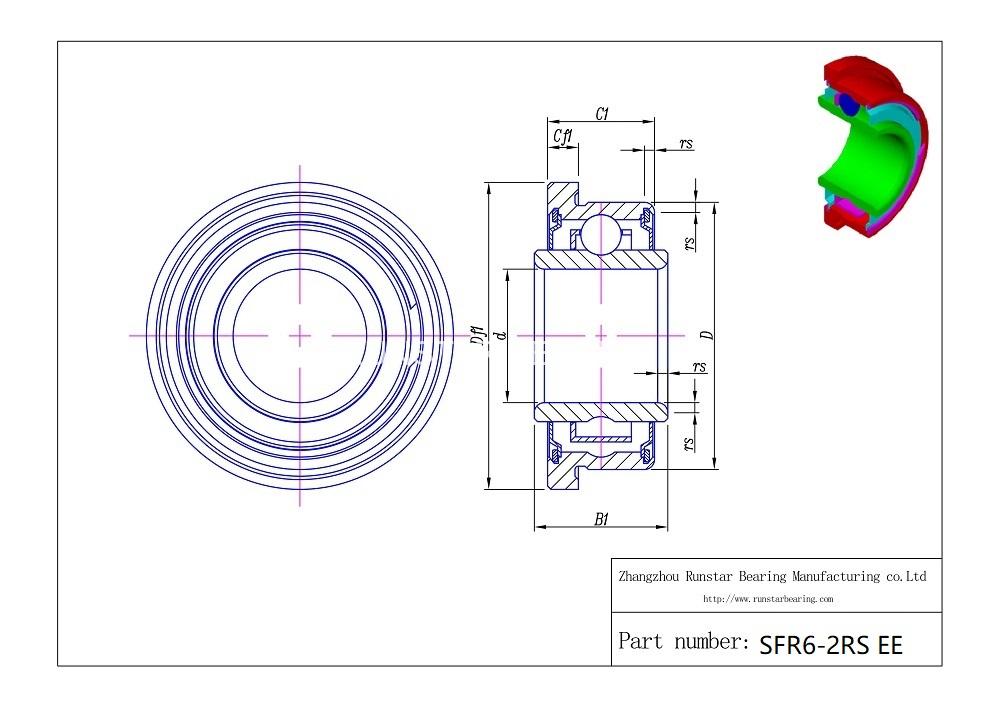

Bore diameter(d) | 3/8″︱9.525mm |
Outer diameter(D) | 7/8″︱22.225 |
Flange OD(Df) | 0.965″︱24.511mm |
Width of outer diameter(C1) | 0.2812″︱7.142mm |
Width of inner diameter(B1) | 0.468″︱11.889mm |
Flange thickness (Bf) | 0.062″︱1.5748mm |
radius (rs) | 0.4mm |
material | Stainless steel 440 c(9CR18) |
ring material | Stainless steel 440 c(9CR18) |
cage material | 300 Series Stainless Steel |
ball material | Stainless steel 440 c(9CR18) |
shields material | 300 Series Stainless Steel |
Grade | ABEC-1(higher grade available) |
Clearance | C0(other clearance available) |
BALL SIZE(mm) | 3.97 |
BALL QTY | 7 |
lubrication | grease(oil available) |
Temperature Range | -30℃~130℃ |
weight(g) | 12.4 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 2834N |
Static Load Rating (Cor) | 1139N |
Extended inner ring bearings are also called extended inner ring bearing, extended inner ring ball bearings or extended inner ring ball bearing, it is referred a ball bearings with a extended inner ring.

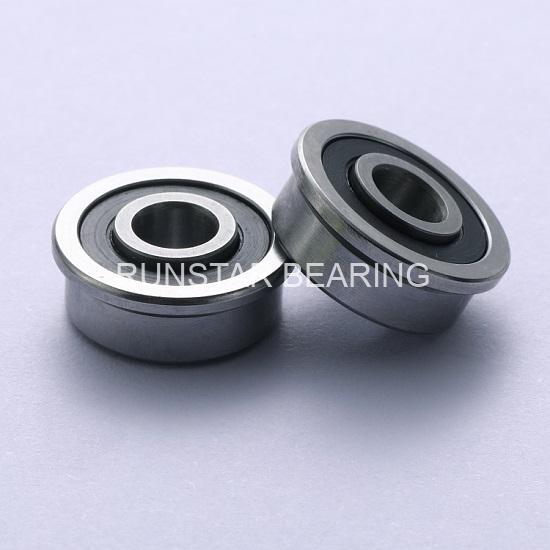

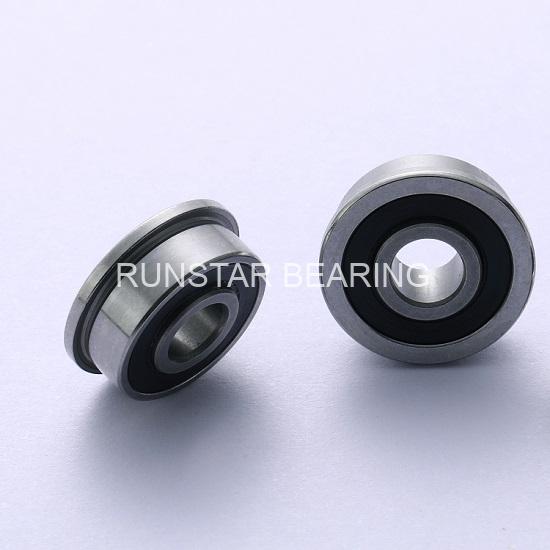

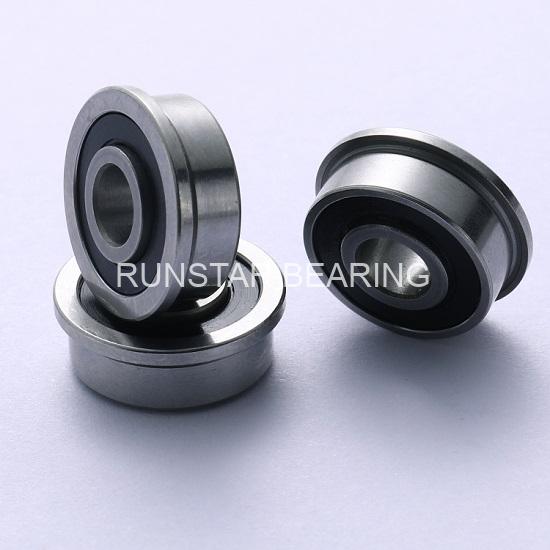

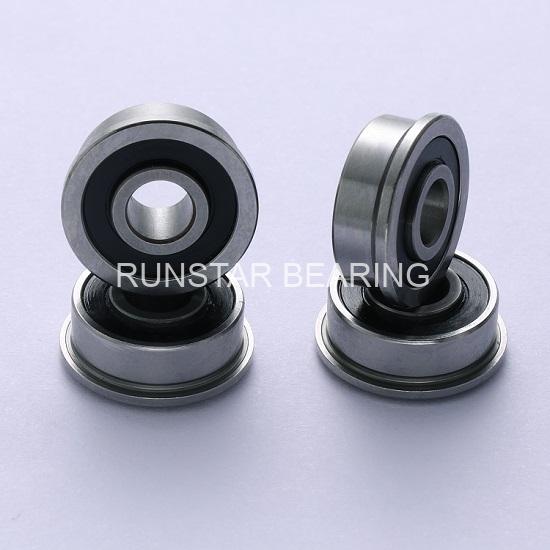

SFR6-2RS EE is a pop extended inner ring bearings for industries, it is with a bore diameter 9.525mm,and a outer diameter 22.225mm,and a outer flange diameter 24.511mm, and a width of outer ring 7.142mm, and a width of inner ring 11.889mm.
Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is s professional extended inner ring bearings manufacturer in China, we have a full dimension of extended inner ring bearings for choice,the grade can be from ABEC-1 to ABEC 9 for choice, there are chrome steel(Gcr15),stainless steel(440 or 420) or hybrid ceramic for choice in Runstar, Custom-made extended inner ring ball bearings or wide inner ring ball bearings are accepted in Runstar.
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
SFR6-2RS EE |
