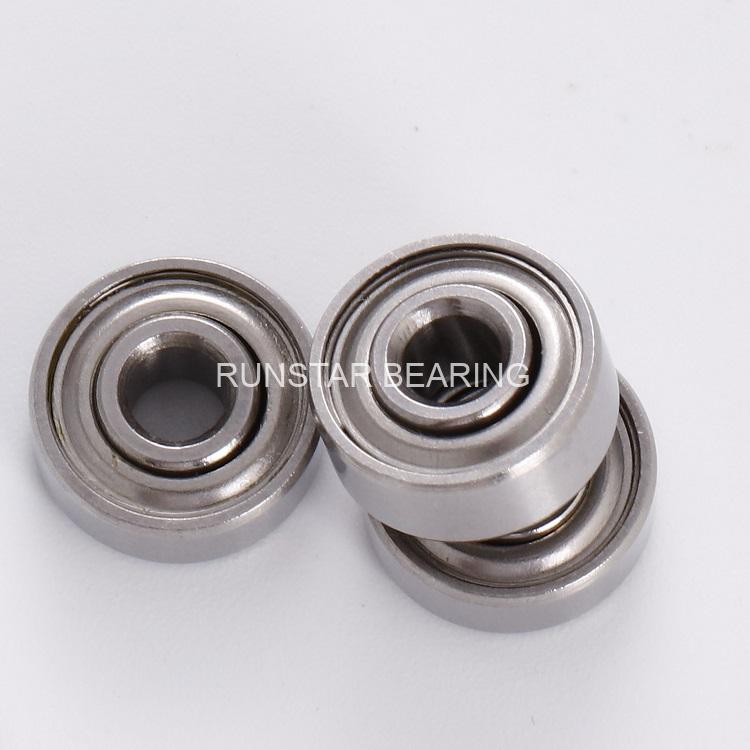

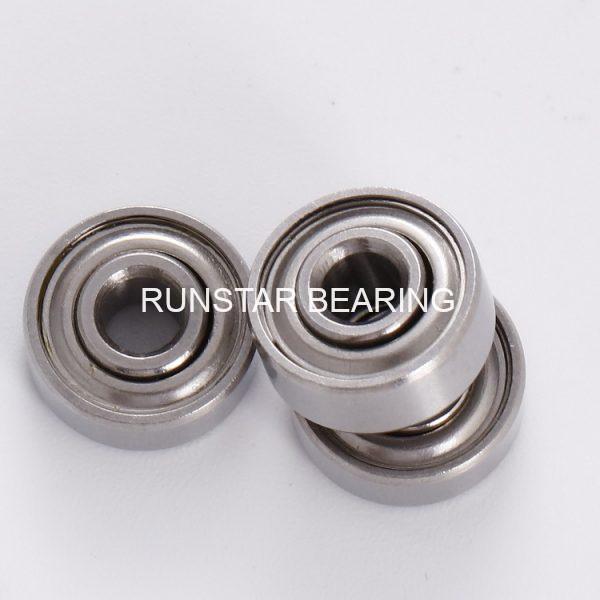

Part Number |
SR6ZZ EE |
Bearing type |
BALL |
Structure |
Single Row |
Load Direction |
Radial |
Seal type |
Shields |
Bore diameter(d) |
3/8″︱9.525mm |
Outer diameter(D) |
7/8″︱22.225mm |
Width of outer diameter(C1) |
0.2812″︱7.142mm |
Width of inner diameter(B1) |
0.468″︱11.889mm |
material |
Stainless steel 440C(9cr18) |
ring material |
Stainless steel 440C(9cr18) |
cage material |
300 Series Stainless Steel |
ball material |
Stainless steel 440C(9cr18) |
shields material |
300 Series Stainless Steel |
Grade |
ABEC-1(higher grade available) |
Clearance |
C0(other clearance available) |
BALL SIZE(mm) |
3.965mm |
BALL QTY |
7 |
lubrication |
grease(oil available) |
Temperature Range |
-30℃~130℃ |
weight(g) |
11.7 |
ISO9001:2015 |
PASSED |
REACH |
PASSED |
ROHS |
PASSED |
Dynamic Load Rating (Cr) |
2834 N |
Static Load Rating (Cor) |
1139 N |
