| Part Number | SFR144TLZW |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Single Shields |

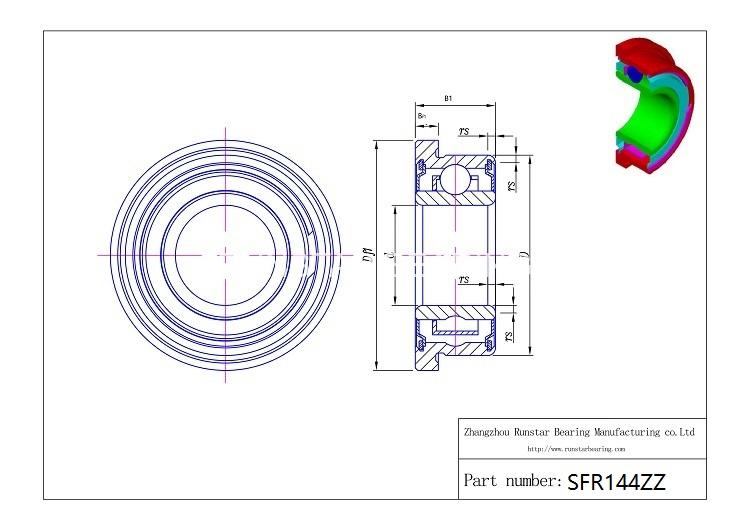

| Bore diameter(d) | 1/8″︱3.175mm |
| Outer diameter(D) | 1/4″︱6.35mm |
| Flange OD(Df) | 0.2960″︱7.5184mm |
| Width(B) | 0.1094″︱2.779mm |
| Flange thickness (Bf) | 0.031″︱0.7874mm |
| radius (rs) | 0.1mm |
| material | Stainless steel 440C(9Cr18) |
| ring material | Stainless steel 440C(9Cr18) |
| cage material | Torlon |
| ball material | Stainless steel 440C(9Cr18) |
| shields material | Stainless steel 304 |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.48 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 240 N |
| Static Load Rating (Cor) | 75 N |
There are some different shapes of dental handpiece bearings in Runstar, there are smooth type,flange type or with a step on outer ring for the shapes.The dental handpiece bearings can be open,or with one shields etc. we have full sizes of dental handpiece bearings.
The item SFR144TLZW is belong to the dental handpiece with flange in shape, it is a very pop size for all kinds of dental drill brands such as W&H,Bein Aai,Lares,KaVo,FARO,Midwest,Adec,Yushida,Simens and Star etcs.It is made of refined stainless steel with high precision ABEC-9, and it is with a bore diameter 3.175mm,a outer diameter 6.35mm and a width 2.78mm. And it is with shield in one side that is easy for user to reduce the temperature of the dental drill with water .The material of cage is Torlon which can support the high speed 350000~400000 rpm.
Dental Handpiece Bearings are called dental bearings,dental drill bearing or dental turbine bearings in difference places, they are referred high speed miniature bearings used in dental turbine. Compared with common miniature bearings, dental handpiece bearings need to be made with refined material and with high precision,for the rotation speed of dental bearings can be from 350000~400000rpm under the air pressure of 200-250kpa,so the dental bearings need to have the following characteristics of high precision, high speed, low noise, low vibration, high temperature resistance, corrosion resistance, long life and environmental protection, which are deeply loved and recognized by users.
Runstar is a professional dental handpiece bearings manufacturer, we have been committed to the R & D and production of high-precision dental handpiece bearings(dental bearings) since 2007.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| SFR144TLZW |
