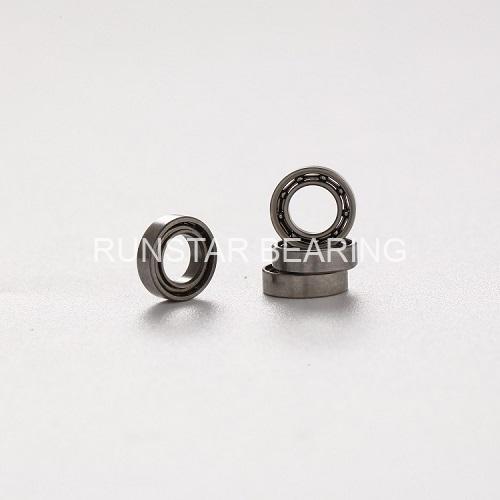

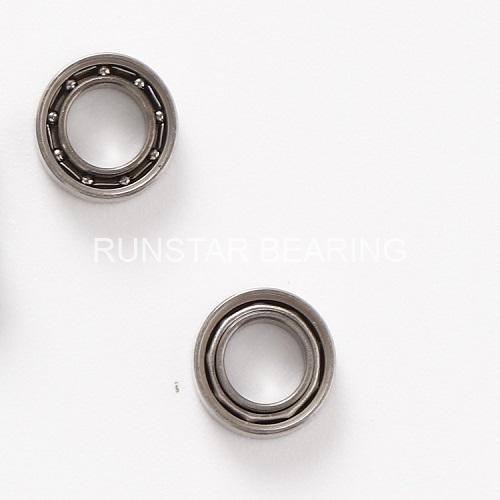

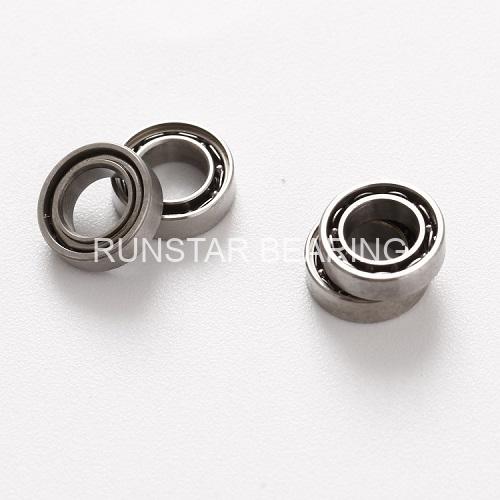

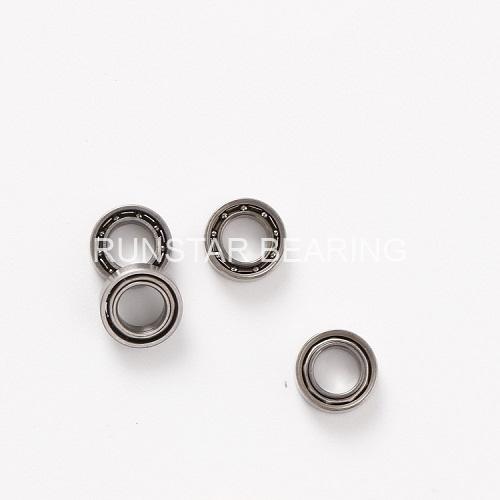

Part Number | SR155 |
Bearing type | Ball |
Structure | Single Row |
Load Direction | Radial |
Seal type | Open |
Bore diameter(d) | 5/32″︱3.969mm |
Outer diameter(D) | 5/16″︱7.938mm |
Width(B) | 0.1094″︱2.779mm |
material | Stainless steel 440C(9Cr18) |
ring material | Stainless steel 440C(9Cr18) |
cage material | Stainless steel 304 |
ball material | Stainless steel 440C(9Cr18) |
Rubber material | Stainless steel 304 with rubber |
Grade | ABEC-1 |
Clearance | C0 |
BALL SIZE(mm) | 1mm |
BALL QTY | 10 |
lubrication | grease or oil |
Temperature Range | -30℃~130℃ |
weight(g) | 0.51 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 306 N |
Static Load Rating (Cor) | 120 N |
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
SR155 | SR1-5532 | SR155 | SX5/32 | S3967 | SR155 |
