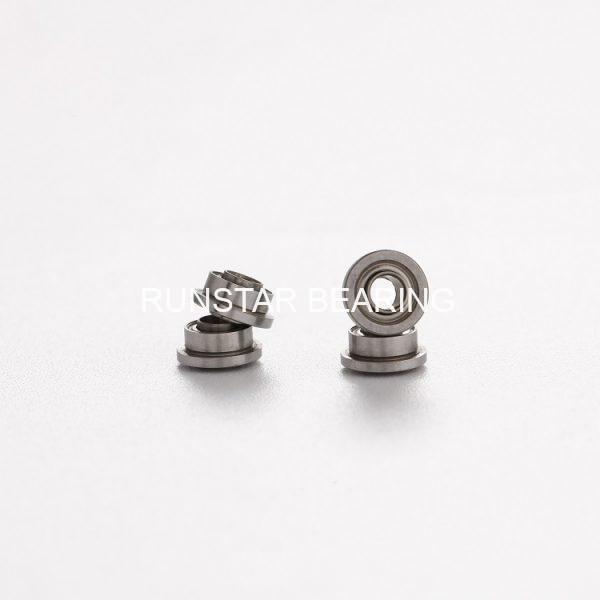

bearings manufacturer in china SFR1-5ZZ EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SFR1-5ZZ EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 3/32″︱2.381mm
Outer diameter(D) 5/16″︱7.938mm
Flange OD(Df) 0.3590″︱9.1186mm
Width of outer diameter(C) 0.1406″︱3.571mm
Width of inner diameter(B) 0.1719″ | 4.366 mm
Flange thickness (Bf) 0.031″︱0.7874mm
radius (rs) 0.15mm
material Stainless steel 440C(9CR18)
ring material Stainless steel 440C(9CR18)
cage material 300 Series Stainless Steel
ball material Stainless steel 440C(9CR18)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.588mm
BALL QTY 6
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.25
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 471N
Static Load Rating (Cor) 142N
bearings manufacturer in china sfr1 5zz ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SFR1-5ZZ EE
