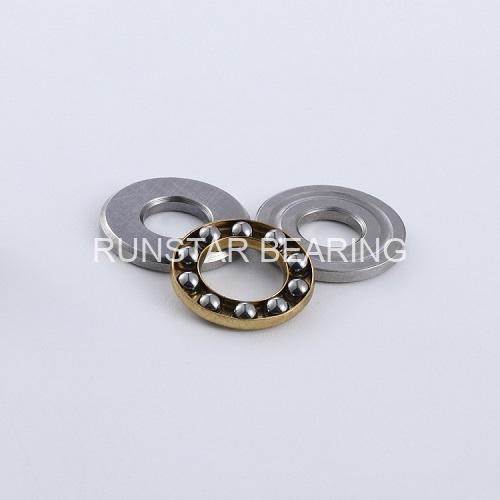

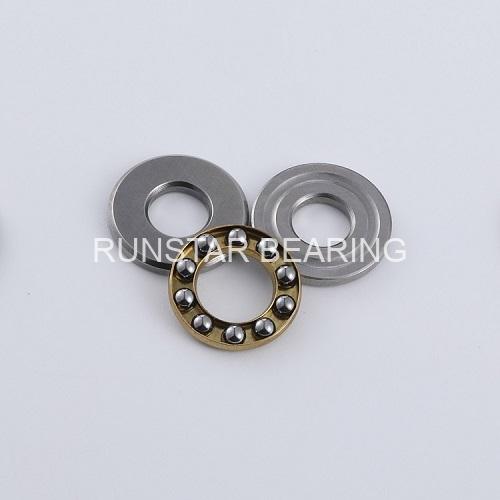

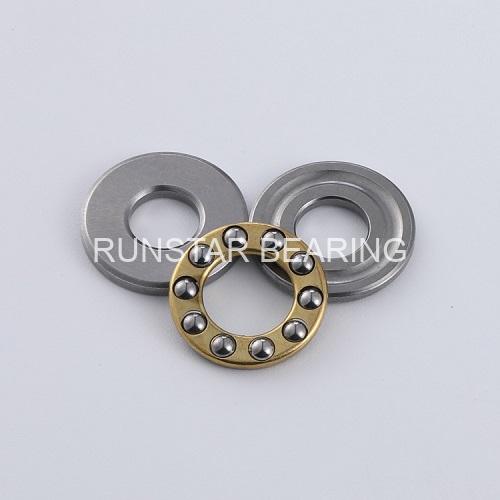

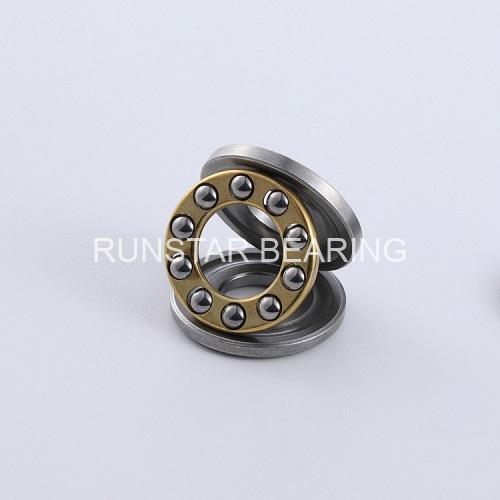

bearing thrust washer 51112

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 51112
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 60mm
Outer diameter of housing washer(D) 85mm
bore diemater of housing washer(d1) 62mm
Outer diameter of shaft washer(D1) 85mm
thickness( H) 17mm
radius 1mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)
BALL QTY
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 270
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 40.20 KN
Static Load Rating (Cor) 108  KN
Limit speed(rpm)for bearing with grease 2600
Limit speed(rpm)for bearing with oil 3800

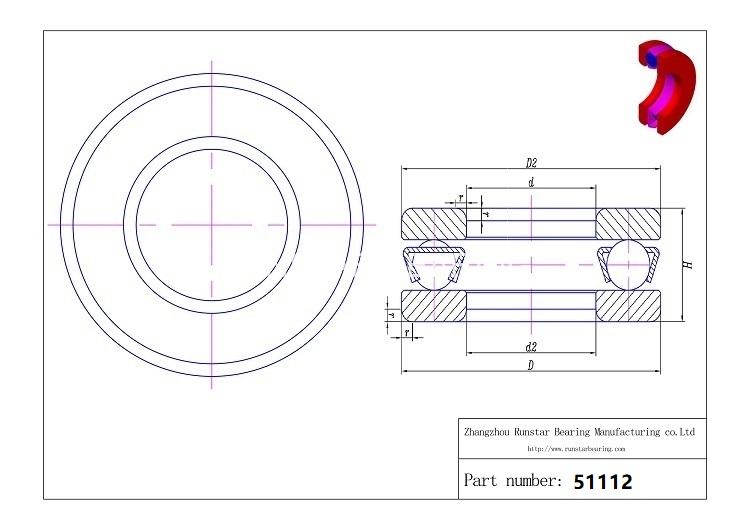

bearing thrust washer 51112 d

friendly reminder

The unit weight is 0.27 KG per piece,so please consider the suitable way of delivery before order.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
51112
