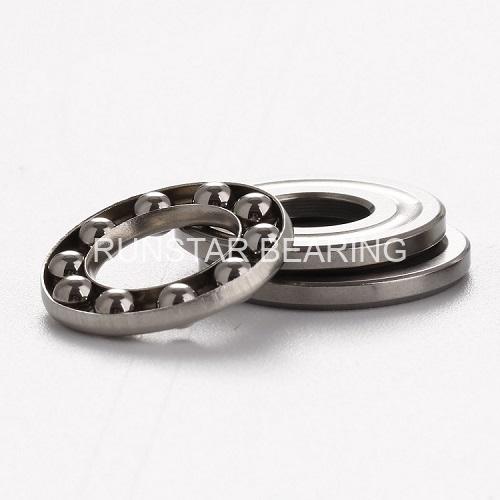

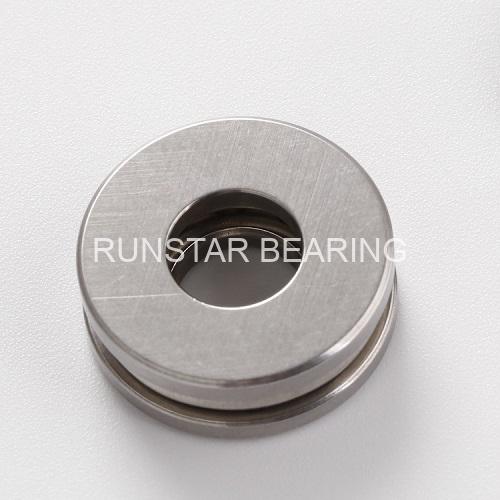

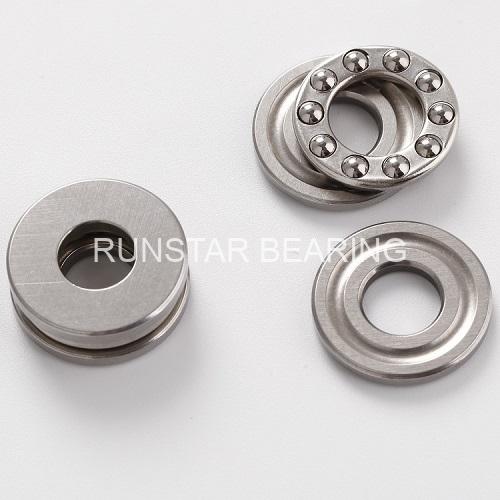

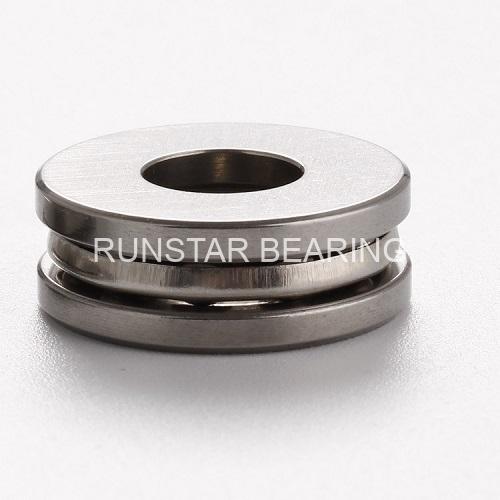

ball thrust bearing sizes 51104

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 51104
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 20mm
Outer diameter of housing washer(D) 35mm
bore diemater of housing washer(d1) 21mm
Outer diameter of shaft washer(D1) 35mm
thickness( H) 10mm
radius 0.3mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)
BALL QTY
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 36
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 14.2 KN
Static Load Rating (Cor) 24.5   KN
Limit speed(rpm)for bearing with grease 4800
Limit speed(rpm)for bearing with oil 6700

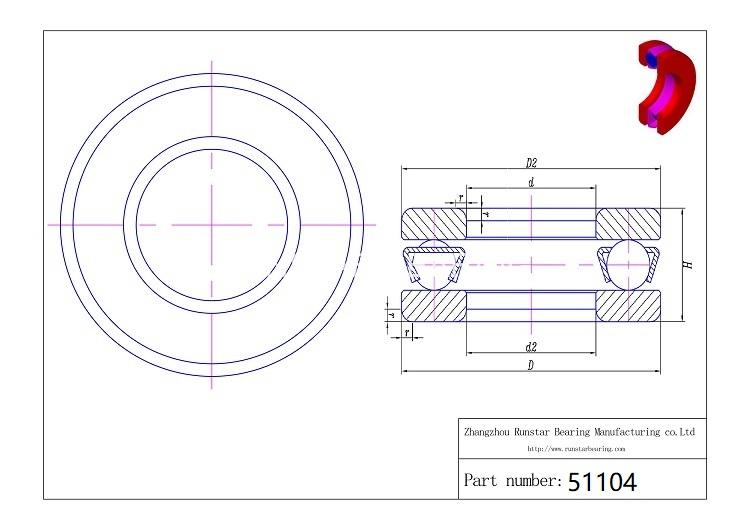

ball thrust bearing sizes 51104 d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
51104
