ball thrust bearing design 51308

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 51308
Bearing type BALL
Structure THRUST BALL
Load Direction AXIAL
Raceway type  groove raceway
bore diemater of shaft washer(d) 40mm
Outer diameter of housing washer(D) 78mm
bore diemater of housing washer(d1) 42mm
Outer diameter of shaft washer(D1) 78mm
thickness( H) 26mm
radius 1mm
material of washers Chrome steel 52100(Gcr15)
material of cage bronze or stainless steel
ball material Chrome steel 52100(Gcr15)
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm)
BALL QTY
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 530
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 69.2 KN
Static Load Rating (Cor) 135 KN
Limit speed(rpm)for bearing with grease 1900
Limit speed(rpm)for bearing with oil 3000

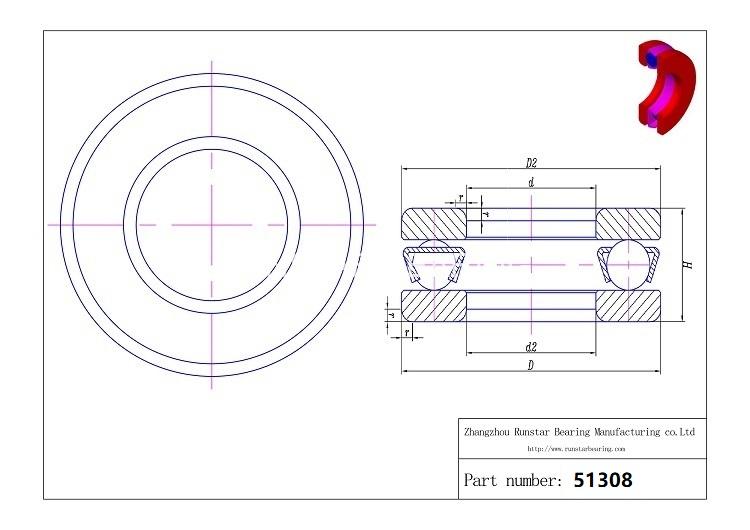

ball thrust bearing design 51308 d

friendly reminder

The unit weight is 0.53KG per piece,so please consider the suitable way of delivery before order.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
51308
