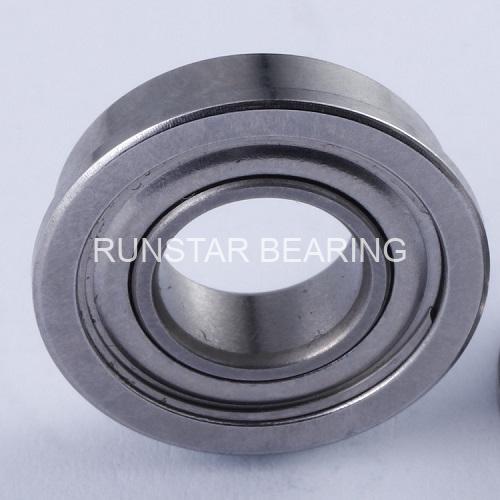

ball cage bearings F609ZZ

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number F609ZZ
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Shields
Bore diameter(d) 9mm
Outer diameter(D) 24mm
Flange OD(Df) 27mm
Width(B) 7mm
Flange thickness (Bf) 1.5mm
radius (rs) 0.3mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 3.175mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 16
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 2097N
Static Load Rating (Cor) 865N
ball bearings types f689zz d 1

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
F609zz
