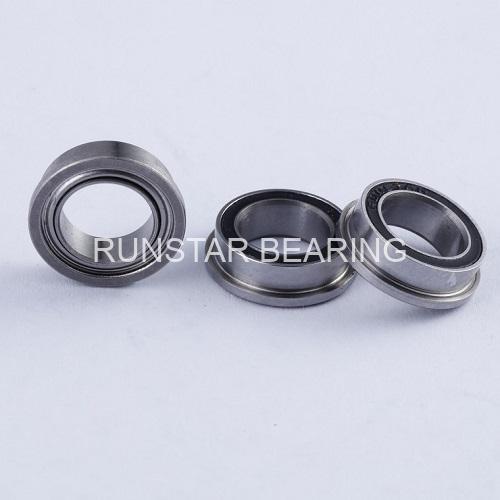

Part Number |
SFR166-2RS |
Bearing type |
BALL |
Structure |
Single Row |
Load Direction |
Radial |
Seal type |
Rubber seals |
Bore diameter(d) |
3/16″︱4.762mm |
Outer diameter(D) |
3/8″︱9.525mm |
Flange OD(Df) |
0.422″︱10.7188mm |
Width(B) |
1/8″︱3.175mm |
Flange thickness (Bf) |
0.031″︱0.7874mm |
radius (rs) |
0.1mm |
material |
Stainless steel 440C(9Cr18) |
ring material |
Stainless steel 440C(9Cr18) |
cage material |
Stainless steel 304 |
ball material |
Stainless steel 440C(9Cr18) |
shields material |
Stainless steel 304 |
Grade |
ABEC-1(higher grade available) |
Clearance |
C0(other clearance available) |
BALL SIZE(mm) |
1.588mm |
BALL QTY |
8 |
lubrication |
grease(oil available) |
Temperature Range |
-30℃~130℃ |
weight(g) |
0.97 |
ISO9001:2015 |
PASSED |
REACH |
PASSED |
ROHS |
PASSED |
Dynamic Load Rating (Cr) |
605N |
Static Load Rating (Cor) |
218N |
