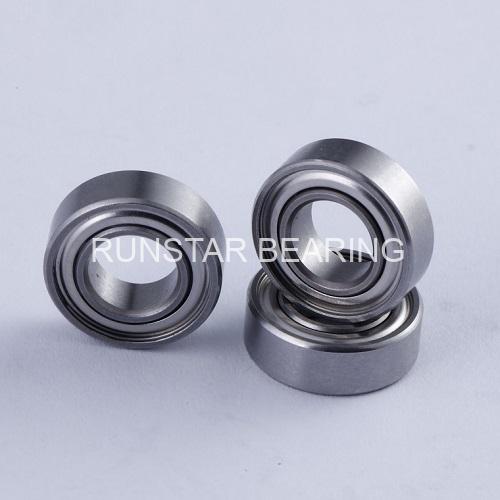

Part Number |
MR117ZZ |
Bearing type |
BALL |
Structure |
Single Row |
Load Direction |
Radial |
Seal type |
Shields |
Bore diameter(d) |
7mm |
Outer diameter(D) |
11mm |
Width(B) |
3 mm |
material |
Chrome steel 52100(Gcr15) |
ring material |
Chrome steel 52100(Gcr15) |
cage material |
300 Series Stainless Steel |
ball material |
Chrome steel 52100(Gcr15) |
shields material |
300 Series Stainless Steel |
Grade |
ABEC-1(higher grade available) |
Clearance |
C0(other clearance available) |
BALL SIZE(mm) |
1.2mm |
BALL QTY |
9 |
lubrication |
grease(oil available) |
Temperature Range |
-30℃~130℃ |
weight(g) |
0.71 |
ISO9001:2015 |
PASSED |
REACH |
PASSED |
ROHS |
PASSED |
Dynamic Load Rating (Cr) |
387 N |
Static Load Rating (Cor) |
162 N |
