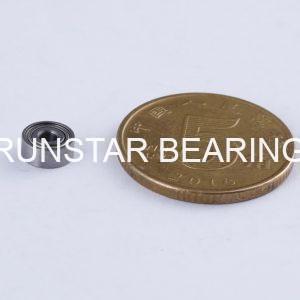

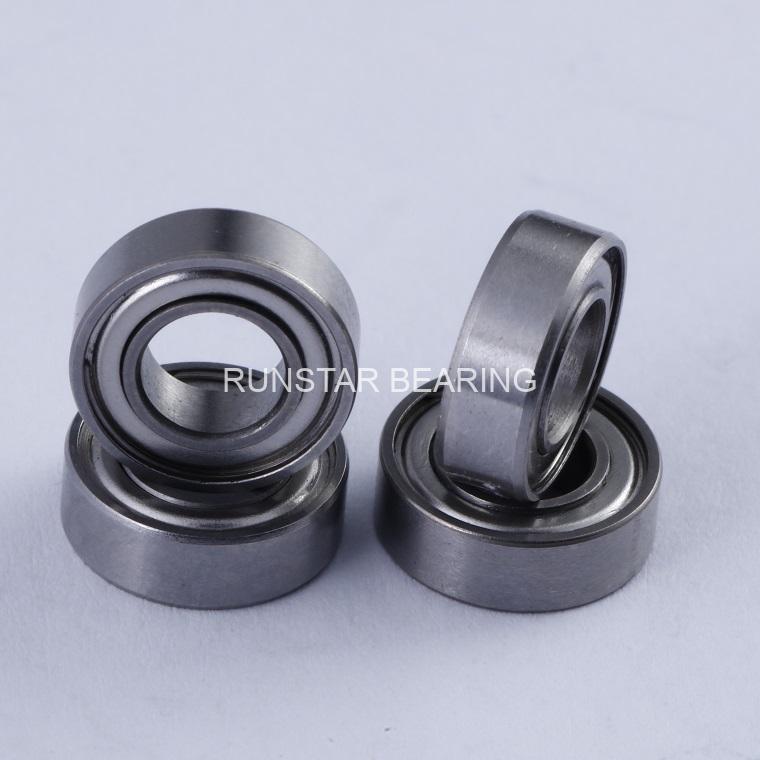

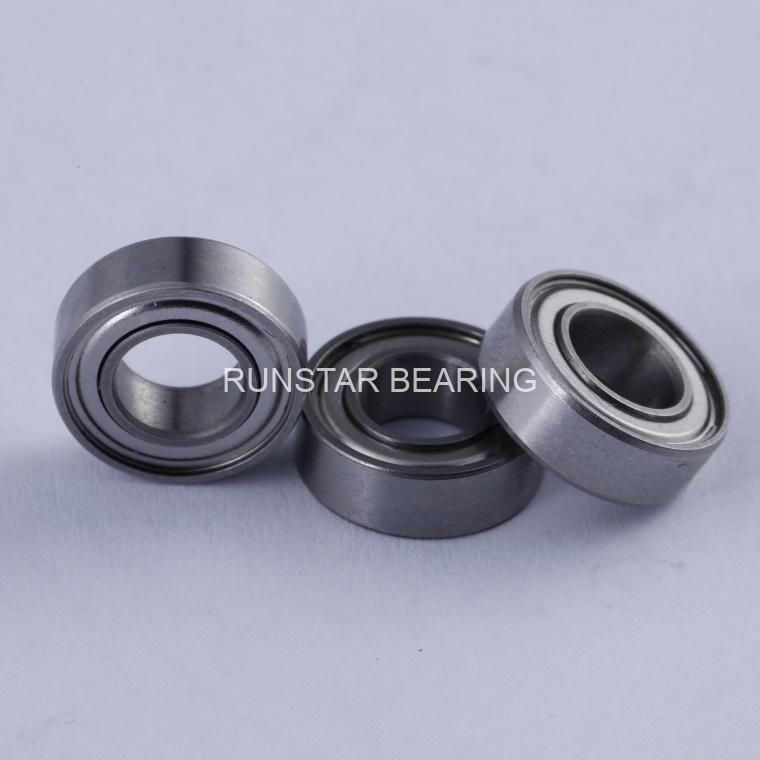

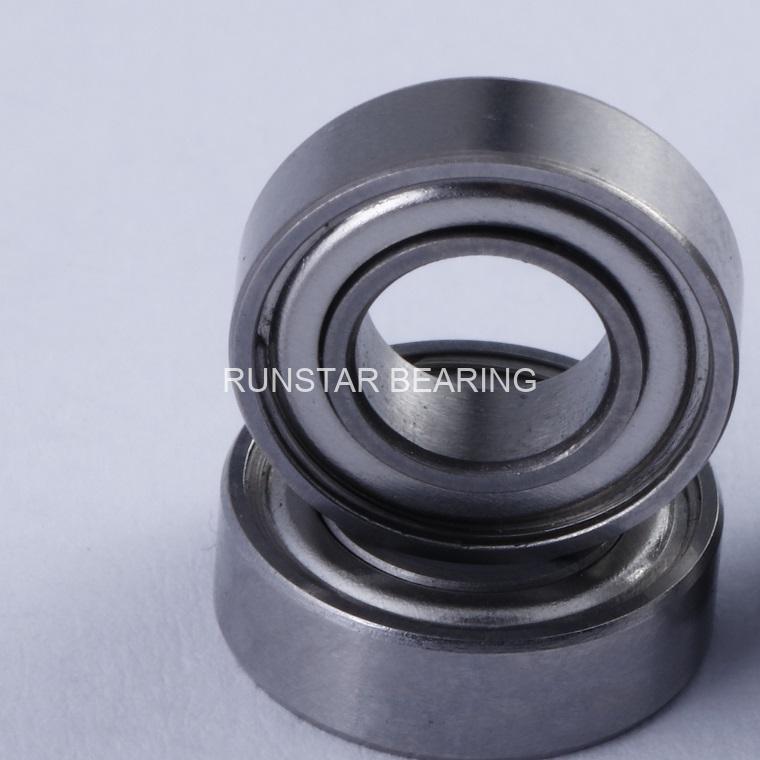

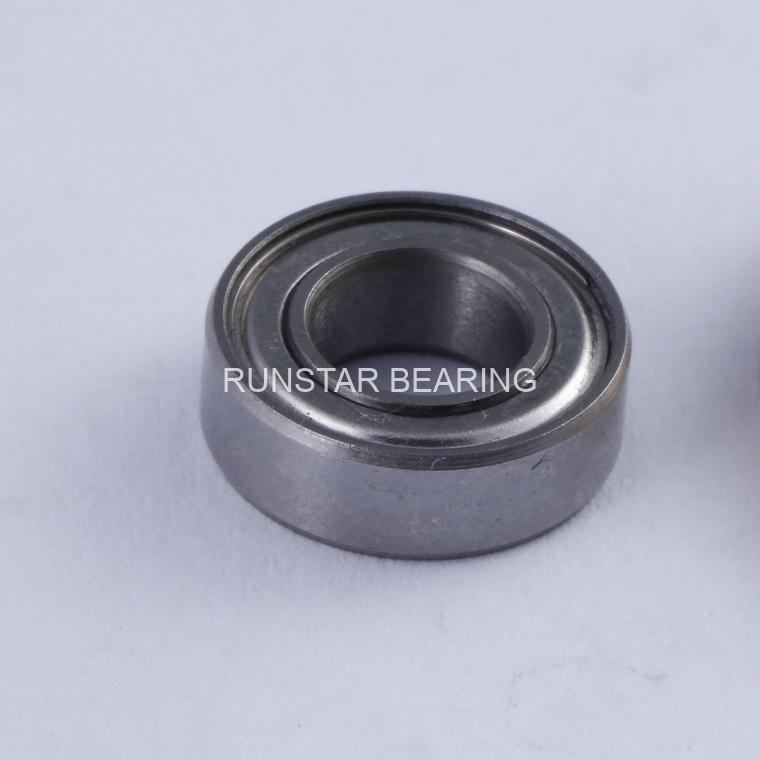

| Part Number | SR188ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 1/4″︱6.35mm |
| Outer diameter(D) | 1/2″︱12.7mm |
| Width(B) | 3/16″︱4.762mm |
| material | Stainless steel 440 C(9Cr18) |
| ring material | Stainless steel 440 C(9Cr18) |
| cage material | Stainless Steel 304 |
| ball material | Stainless steel 440 C(9Cr18) |
| shields material | 300 4Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.588mm |
| BALL QTY | 10 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 1.6 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 920 N |
| Static Load Rating (Cor) | 355 N |
we design and make high speed yoyo bearing with different shapes and material for choices.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| SR188ZZ |
