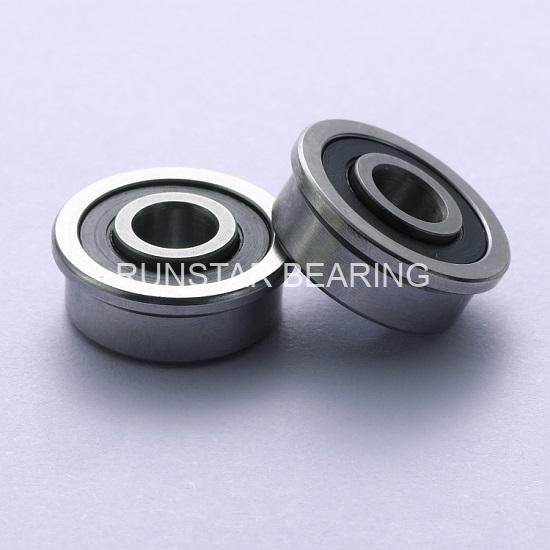

ball bearing wide inner ring SFR1810-2RS EE

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SFR1810-2RS EE
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 5/16″︱7.938mm
Outer diameter(D) 1/2″︱12.7mm
Flange OD(Df) 0.547″︱13.8938mm
Width of outer diameter(C) 5/32″︱3.967mm
Width of inner diameter(B) 3/16″︱4.762mm
Flange thickness (Bf) 0.031″︱0.7874mm
radius (rs) 0.15mm
material Stainless steel 440C(9CR18)
ring material Stainless steel 440C(9CR18)
cage material 300 Series Stainless Steel
ball material Stainless steel 440C(9CR18)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1.5mm   (1.588MM*10 PCS)
BALL QTY 12
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 1.72
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 464N
Static Load Rating (Cor) 222N
ball bearing wide inner ring sfr1810 2rs ee d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SFR1810-2RS EE
